BSGH automatic cable stripping machine provides an efficient recycling solution for scrap wires below 200mm, involving ordinary household wires, large-diameter cables, multi-core cables, armored cables, or other scrap cables that copper wire granulators can't handle, totaly solving your piles of waste wire problem. Besides, our cable stripper is also famous for stable performance and longer service life, allowing a clean separation from the outer insulation layer.
We offer a variety of advance cable stripping machines
Solutions for Every Scale
BSGH offers more than 100 types of automatic cable stripping machine models, covering small units for home use, medium-size for scrapyard and big type for industrial plants, you can always find a suitable one here.
Wide Processing Range
Strong stripping capability, handling cables from 1.5mm to 200mm in diameter, including home use wires, solid wires, flat wires, submarine wires.
Easy to Adjust
Equipped with adjustment handles, you only need to twist them then handling different cables in seconds can come true.
Safe Use
Every cable stripping machine from BSGH has an emergency stop button, protecting your safety.
We offer over 100 models of automatic cable stripping machine, mainly divided into small household cable stripping machines, cost-effective medium cable stripper machines, and industrial large copper cable stripping machines. Below are our best-selling models in the European and American markets during these years for your reference.

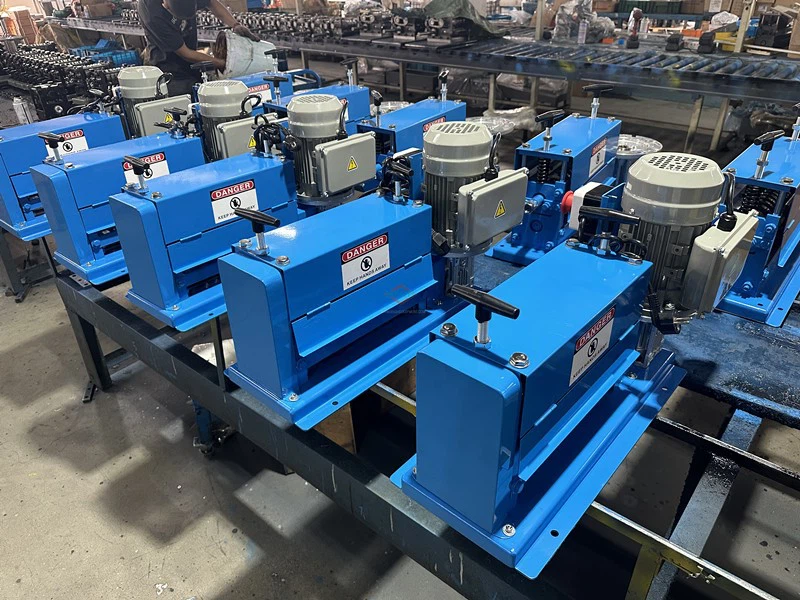

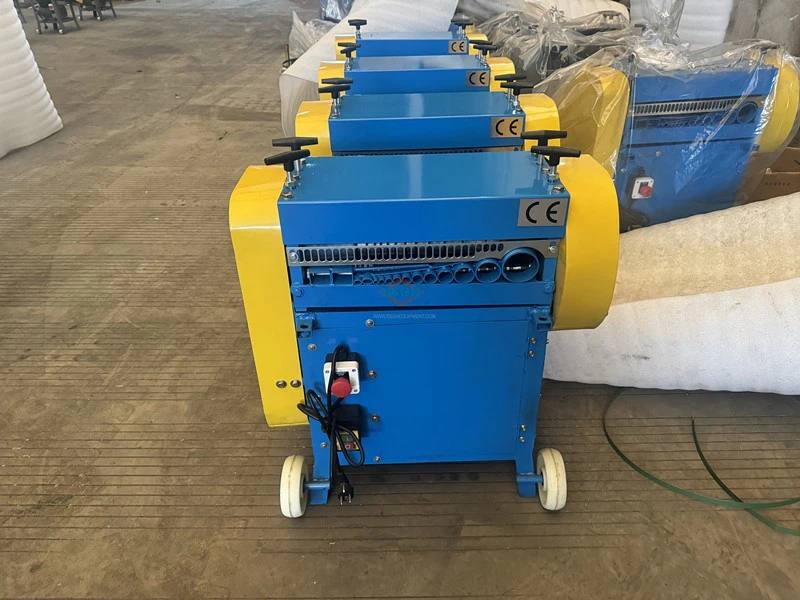

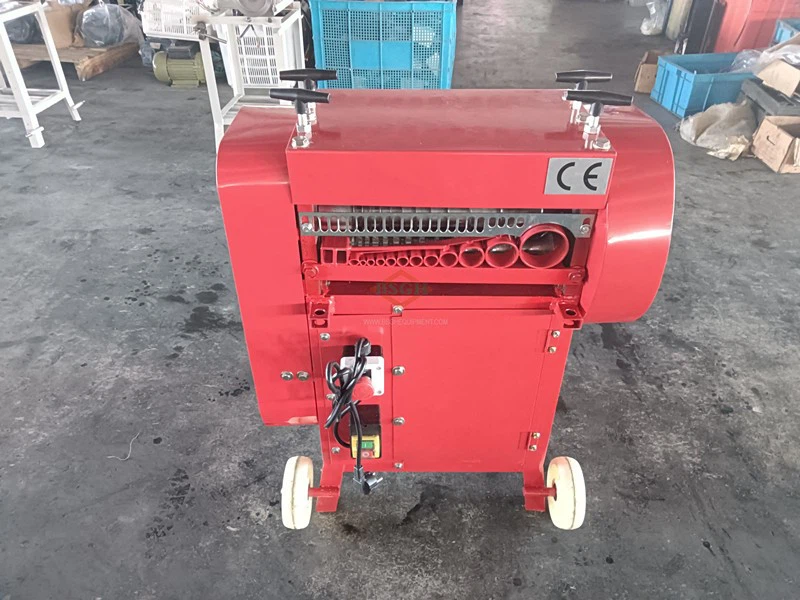

BSGH mini automatic cable stripping machine is designed for household use. Despite compact size, it is perfectly combining flexibility, excellent performance, and high efficiency, accurately handling cables of 1- 60mm in diameter, already an ideal machine for home use or small recycling scrapyard as well as workshops.
Our medium cable stripping machines have strong processing capabilities and can efficiently handle various cables with diameters ranging from 1mm to 72mm, including lightly armored cables. With excellent stability and low energy consumption, BSGH medium-size cable stripper can payback in one month based on customer feedbacks.
BS-AC50 Hot sale automatic cable stripping machine
Processing range: 1-48MM
Power: 2.2KW + Reducer
13 round holes + 5 frame blade holes + 1 pressing hole + 35 blades (including 10 frame blades)

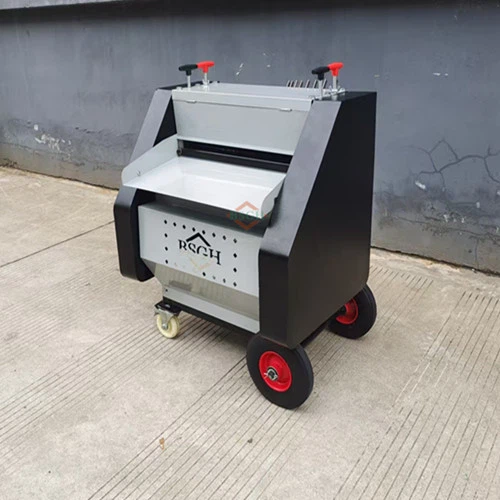

BS-AC55 advanced automatic cable stripping machine
Processing range: 1-50MM
Power: 2.2KW + Reducer
10 round holes + 8 frame blade holes + 1 pressing hole + 33 blades (including 16 frame blades)

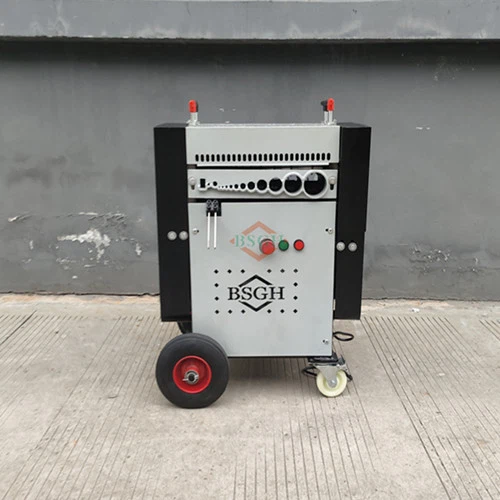

BS-AC65 Newly automatic cable stripping machine
Processing range: 1-62MM
Power: 3KW + Reducer
11 round holes + 2 frame holes + 1 pressing hole + 23 blades (including 2 frame blades)
BS-AC80 Best cable stripping machine
Processing range: 1-72MM
Power: 2.2KW + Reducer
12 round holes + 2 frame blade holes + 1 pressing hole + 23 blades (including 2 frame blades)
Heavy-duty big cable stripping machine from BSGH is designed for industrial-grade companies. Its powerful drive system and sharp blades easily handle various large cables up to 200mm in diameter, including armored cables, high-voltage cables, high-density cables, and submarine cables. Bulit with a reinforced body, and high-strength parts, our large automatic cable stripper keeps a continuous and stable performance when processing tough cables.
BS-AC120 automatic cable stripping machine
Processing range: 10-120MM
Power: 3KW + Reducer
1 feeding hole + 2 blades
BS-AN120 automatic cable stripping machine
Processing range: 10-120MM
Power: 7.5KW + Reducer
1 big feeding hole + 2 blades
BS-AN125 automatic cable stripping machine
Processing range: 1.5-120MM
Power: 3KW + Reducer
Left side for 1.5-35 mm and right side for 10-120mm
BS-AN130 automatic cable stripping machine
Processing range: 1.5-120MM
Power: 5.5KW + Reducer
Left range: 1.5-35 mm Middle
Right range: 10-120mm
BS-AN160 automatic cable stripping machine
Processing range: 10-160MM
Power: 4KW + Reducer
Left range: 10-40 mm
Right range: 20-120mm
BS-200 automatic cable stripping machine
Processing range: 60-200MM
Power: 7.5KW + Reducer
Features: 1 big feeding hole
+ 2 up and down blades
Below are some reference videos showing working process of our automatic cable stripping machines. All models deliver stable, high-precision stripping performance, achieving clean separation of copper wire and outer insulation layer.
Fast Speed
Our automatic cable stripping machine can continuously strip 20-30 meters of scrap cable per minute, greatly improving your production efficiency.
CE Approval
Every model is strictly manufactured to meet international safety standards and carries CE Certification, ensuring not only superior operational safety but also seamless customs clearance.
Robust Blades
The blades are made of SKD-11 steel or high-manganese steel, resist crack, deform and wear. Cutting edge remains sharp for a long time, easily cutting through various insulating layers, significantly extending the blade's lifespan.
Anti-slip Shaft
Equipped with a unique anti-slip shaft, effectively increases friction with the cable, completely preventing slipping, shifting, or spinning during feeding.
Automatic Operation
Automated design reduces manual intervention during operation. You only need to feed the cable into the machine through the suitable inlet and comes out pure copper wire.
Low Maintenance
Only routine lubrication, inspection, and cleaning are needed in daily use, low maintenance cost makes sure our automatic cable stripping machine for more than ten years.
As Chinese leading manufacturer of automatic cable stripping machines, BSGH has focused on updating technology that turns your scrap into profit for over three decades. Our machine is now trusted by clients from over 80 countries, with 60% repurchase rate.

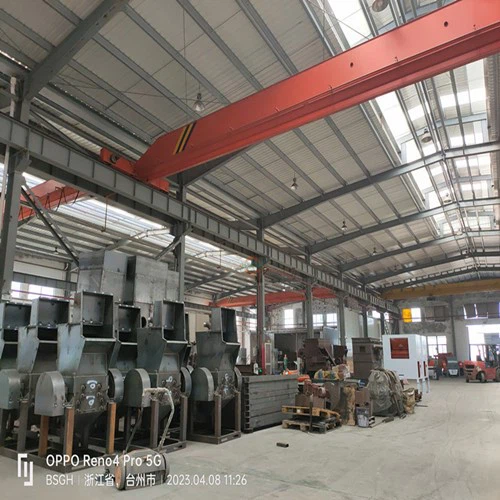

BSGH maintains strict control over the entire machine lifecycle—from R&D and production to rigorous quality inspection.
How to choose the right automatic cable stripping machine?
+
-
You can choose the appropriate machine based your cable diameters. Additionally, some special cables require specific machines. For example, if you need to process rubber cables, you can purchase a model with frame blades. If you need to process armored cables, you can purchase our heavy-duty wire stripping machines. If not sure, you can just send us pictures of your cables, and we will provide the most professional recommendations.
Can your automatic cable stripping machine handle cables with a diameter of 25mm or less?
+
-
Yes. If you handle a small number of cables smaller than 25mm, you can use an automatic cable stripping machine. However, if you mainly handle fine wires smaller than 25mm with a large quantity, we strongly recommend invest a copper wire granulator for higher efficiency.
Will I get a discount if I buy several units?
+
-
Of course, the more quantity you buy, the better price you will get, also you can message us for more details.
How much is the automatic cable stripping machine harbor freight fee?
+
-
For automatic cable stripping machine harbor freight, it will rely on which model you want and the quantity you buy. Normally for small quantity we will send LCL; for big quantity we will send by a GP, more details, you can consult us freely.
What are the benefits of automatic cable stripping machine?
+
-
First, you can reduce the labor cost and improve the cable stripping efficiency;
Second, final product of our automatic cable stripping machine is 100% pure copper wire, able to sell at top price in the market;
Lastly, no need to worry risks of manual cutting.
