BSGH Compressor Motor Recycling Machine is a high-efficiency dismantling and copper windings extraction system, specilized in handling scrap compressors, because waste compressor is made up of hard steel outer casing and inner stator which has valuable copper windings inside, if you want to obtain the copper coil, there needs two steps: first, you can use our advanced plasma cutting technology or high-hardness alloy cutting blades to open the compressor outer casing. BSGH compressor motor cutting machine cleanly removes the steel shell while fully protecting the internal stator structure, ensuring maximum material value. Second, you can utilize the high-performance motor recycling machine to cut and pull out the entire copper windings then you will get clean, high-purity copper with minimal loss.
Worth your investment
100% precise cutting
Our compressor motor recycling machine can accurately cut the waste outer shell in one pass, saving your time.
intact copper Windings
BSGH compressor stator pulling machine is able to extract copper windings with zero damage, selling at top price, making more profits.
Easy to use
Button control makes our compressor shell cutting machine easy to operate, one worker can handle, saving your labor cost.
long durability
Our motor recycling machine is made of high-strength alloy steel or SKD-11 material, preventing resistent and cracking, more durable.
Low maintenance
Under normal use, BSGH compressor motor recycle machine can serve longer time than others in the market. Only blades and nozzles are the worn parts, saving your maintenance cost.
wide application
Suitable for various compressors such as home use air conditioners and refrigerators, as well as industrial ac, including round, flat, square, normal or irregular shape, totally meeting your common scrap compressor dismantling needs.
Plasma compressor motor recycling machine is specilized in disassembly compressor steel casings, no matter your scrap is round, flat, long or square even irregular shape, it can handle . Plase cutter abides by a high-temperature plasma arc to precisely and quickly melt the compressor's robust, sealed casing, a crucial first step for the subsequent internal copper windings and other core components recycling.
• Finish cutting in just 15-20 seconds.
• Cutting nozzle can automatically adjust to the shape of the compressor to ensure precise cutting. It automatically stops after cutting, avoiding both material waste and damage to the internal stator.
• The fully enclosed cutting chamber design effectively prevents sparks from flying, maximizing the safety of operators.
Power: 13KW
Processing range: compressors with length of 150-500mm and outer diameter of 120-260mm.
BSCC blade compressor cutting machine safely and precisely removes the hard steel casing of compressors by mechanical cutting, fit for normal round waste compressors. Its operation is simple and efficient: the operator places and fixes the compressor on the process platform; press on button, used compressor motor is driven to rotate at a constant speed, while four high-hardness alloy blades continuously cut the compressor outer shell and the entire process takes approximately 2-3 minutes.
• With a robust structure and strong load-bearing capability, BSCC ensures smooth and stable cutting, has a low failure rate, and suitable for long-term continuous operation.
• The blades are made of high-strength alloy and undergo heat treatment, resulting in excellent wear resistance, effectively reducing the frequency of replacement.
Power: 6.2KW
Processing range: compressors with length over 150mm and outer diameter of 120-260mm.
After removing the outer steel casing, you can use any BSGH motor recycling machine to recycle the compressor stator. Here, we mainly recommend two models with high cost-performance:

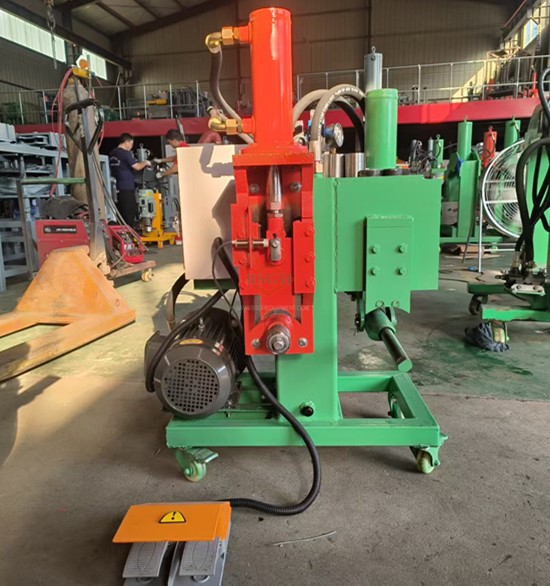

Mini BST motor recycling machine is a cost-effective stator recycling equipment designed for small scrap yards and individual recyclers. It can quickly cut and completely pull out the copper windings from the compressor or other motor stators that have removed casings. Mini BST uses a two-step design: first, the operator places the stator on the cutting part and cuts off one end of the copper winding. Then, place the stator on the pulling part, and control the clamps to pull out the copper winding.
• Integrates cutting and pulling functions, no need for additional machine investment.
• Small footprint allows to be easily placed in limited space.
• Equipped with universal wheels, moved flexibly.
• Low price, high return rate, payback within 1 month.
Power: 3KW
Processing range: stators with diameters of 50-200mm

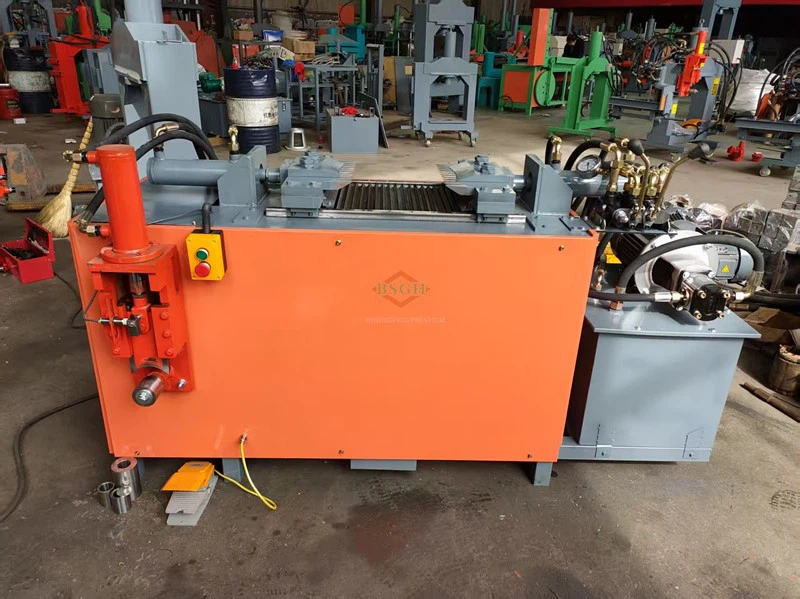

BSM-100 motor cutting and pulling machine is used for efficiently separating copper windings from stators of compressors and various motors with diameters ranging from 40-200mm. It also features cutting and pulling functions. However, unlike the mini BST motor recycling machine, our BSM-100 employs a unique lateral clamping and vertical lifting technology: after cutting the copper winding at one end of the stator, a row of high-strength lateral jaws firmly clamps the stator, while the pulling platform rises, completely separating the silicon steel sheet from the copper windings.
• The special lifting platform design makes BSM-100 extract all copper windings at once, processing a motor stator in just 20-30 seconds.
• Equipped with a precision-designed pulling part and wear-resistant cutting blades, ensuring stable performance and significantly reducing downtime.
Power: 3KW
Processing range: 40-200mm
Our compressor motor recycling machine is suitable for various types of compressors, including those used in air conditioners, refrigerators, and industrial applications. After processing, they are transformed into high-value, complete copper windings. Simultaneously, the metal casing and silicon steel sheets can be further recycled, maximizing your profits.
Below are some testing videos and customer feedback videos of our compressor motor recycling machines. You can witness an excellent recycling results and extremely high efficiency, really a useful helper for your compressor recycling business.
As a global leader in motor recycling technology, we not only provide industry-leading compressor recycling machines, but also offer professional recycling solutions for various motor stators, rotors, transformers, automotive alternators, automotive starters, etc. From mini single machines to heavy-duty recycling production lines, we are fully adaptable to different motor recycling scales.
Excellent reputation
Our equipment has been successfully supplied to over 80 countries worldwide, especially trusted by European and North Americans. From large recycling facilities to small scrap yards, our compressor motor recycling machines are consistently chosen for their stable performance, low maintenance requirements, and high safety, gaining strong customer satisfaction across global markets.
Personalized Customization
If you need to process special raw materials or have specific requirements for the machine, we can custom-made for you involving in voltage, motor brand and power, blade material, machine color, your company logo, etc.
Comprehensive After-Sales Service
Our machines comes with a 1-year warranty, and malfunctions not caused by humans will be repaired or have parts replaced free of charge. We also provide free installation guidance, detailed operation and maintenance guides, and lifetime 24/7 online support as well as field installation.
1. What should I do if there's oil in my compressor?
+
-
If much oil, strongly recomment you drain the oil before using the plasma compressor cutting machine, or you can use a blade compressor cutting machine to remove casing. If little, no need to handle.
2. Can I send you my compressor material for testing?
+
-
Absolutely! You can send compressors to our factory. We will film the actual recycling process and the results, so you can confirm the machine's performance before ordering.
3. My budget is limited, which compressor motor recycling machine should I choose?
+
-
We recommend the blade compressor cutting machine with the mini BST motor recycling machine. They are low-cost, space-saving, and suitable for recycling small compressor stators.
4. Can the compressor motor recycling machine's voltage be customized according to my country's standard?
+
-
Yes. We support global voltage customization, ensuring you can use the device immediately upon receipt.
