1. Adopt a new push-out rod structure, able to extract the copper windings completely and smoothly;
2. Handle scrap motor stators 50-200mm in diameter;
3. Single-phase power supply, you can use it in your house;
4. Pure copper motor keeps continous power;
5. A small version of Car Alternator Cutting And Pulling Machine;
6. Low price and high efficiency, very cost-effective.
Electric motor recycling machine Mini BST makes efficient copper recovery simple and accessible, no complex setup, really a practical and low-barrier entry point to professional motor recycling, fit for small-scale operators and first-time recyclers, also many enthusiasts can diy. It integrates a cresent blade cutter and an efficient push-out rod puller to precisely and completely remove copper windings from motor stators in seconds.
Ideal for processing a wide range of common motors, Mini BST handles stator from 50 mm to 200 mm in diameter, covering most household appliance and small car alternator motor stators. If you want a big one with similar type, please consider our Car Alternator Cutting And Pulling Machine as a choice.
| Model | Electric motor recycling machine Mini BST |
| Power | 3KW |
| Processing Range | 50-200MM |
| Voltage | Support Customization |
| Weight | 220kg |
| Size | L800*W950*H1000MM |

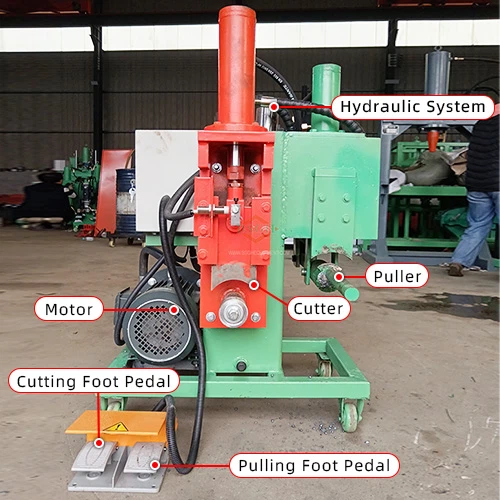

Electric motor recycling equipment Mini BST structures with reinforced all-steel frame, robust and durable. It is made up of motor, cutter, puller, foot pedals and hydraulic system, small yet powerful.
1. Pure copper motor ensures a stable power output during continuous operation and effectively reduces long-term maintenance costs.
2. Two foot pedals with clearly defined functions: the left pedal controls the cutting blade, and the right one controls the pulling part.
3. Cutting blade is crescent shape, made of high-strength SKD-11 and undergoes special heat treatments, able to easily and cleanly cut the ends of copper windings. It also has strong wear resistance, significantly extending the service life.
4. Pulling part depends on push force, the stress point is mainly on the copper coil, and the direction is along the slot opening, thereby minimize silicon steel damage and keep copper windings in whole, especially when handling uniform scrap motor, it processes fast and precisely.
Mini BST is easy to operate; 1 person can complete the motor recycling process, no need special training and significantly saving your labor costs.
The entire recycling process is very convenient and efficient, taking less than one minute to recycle a motor stator.
In September 2025, Kevin, a new recycler from Maldives placed an order for our electric motor recycling machine Mini BST. His primary need was to process small, housing-free motor stators efficiently and profitably. In order to remove Kevin's worry, we kept whole process transparent including sending the video and pictures during production. Immediately after his Mini BST was ready, we made a testing video as shown.
Look! Mini BST is precisely cutting and smoothly pushing out clean copper windings from a stator core, representing a perfect performance for his stator recycling tasks. When Kevin received the video, he was really impressed by the amazing effect as well as our sincere service, bringing him great confidence then promptly settled the final payment.
His Mini BST was finally packed and shipped. We are confident it will help him achieve higher recovery rates and earn more money.
Worth your investment
Easy to operate
Controlled via dual foot pedals, you can use two hands to grasp the scrap stator and get stable performance every time.
Universal wheels
Mini BST has small footprint and four universal wheels, takes up small space and you can flexiblely move it wherever you want.
Low maintenance cost
Control lever adjust the hydraulic system, only needs to add oil regularly, greatly saving maintenance cost.
BSGH wraps each machine in protective film to shield it from moisture, then securely placed inside a custom-fit plywood crate, engineered to absorb shocks and prevent vibration damage during transit. For reliable shipping, we work with our long-term logistics partners. Your Mini BST is transported by trusted carriers to the port, ensuring it arrives safely and on schedule to you.
Our careful multi-step process reflects the commitment to delivering your equipment in perfect condition, so you can make orders with confidence.
Can electric motor recycling equipment Mini BST be used to directly process motors with casings?
No, the casing needs to be removed first. Our BSM-50 motor cutting machine can help you remove the motor casing effectively.
Can your electric motor recycling equipment Mini BST handle motor stators with adhesive?
Yes, but you'd better preheat your stator before using the mini BST, our stator heater machine can achieve.
Can electric motor recycling equipment Mini BST process compressor stators?
Yes, our mini BST is suitable for small compressor stators ranging from 50-200mm after removing the casing.
What spare accessories should I prepare for electric motor recycling equipment Mini BST?
You only need to buy extra blades for spare use, very low maintenace cost.
