BSGH Equipment is a professional copper cable granulator machine manufacturing company, located in Taizhou, Zhejiang Province, with a factory area of more than 60,000 square meters and over 150 outstanding employees, meanwhile, occupying 70% Chinese market share, we have customers from more than 80 countries and regions worldwide, with a repurchase rate over 60%, specifically lies in :
Our Service
30 Years of Professional Experience
As one of the earliest cable granulator machine manufacturers, BSGH has accumulated over 30 years of experience in the copper recycling industry. Every machine is shipped directly from the factory, ensuring you get the best quality equipment at the most competitive factory price.
Market-proven, reliable products
Our core air separation and vibration separation technologies achieve a thorough copper-plastic separation, improving processing efficiency and purity. Key components, such as the crusher blades, are made of high-quality wear-resistant materials, ensuring stability and low maintenance costs under long-term, high-intensity operation.
Comprehensive service
We have a complete service system. When consulting, we accurately recommend suitable models based on your actual needs. During sales, we provide detailed installation guidance and worker training. After-sales, we offer a one-year warranty, and sales team is 24 hours available online to quickly answer all your machine-related questions.
Introduction
BSGH copper granulator machine can efficiently convert scrap cables into high-purity copper and plastic granules that can be directly sold at a high price. During operation, the powerful main crusher first crushes the cables into 3-5mm copper-plastic mixed granules. The mixture then enters a crucial separating system: first, an air separator initially separates the copper and plastic based on their weight difference; then, it passes through a precision vibrating screen for secondary sorting based on different vibration frequencies.
The final copper granules are bright, dry, and 100% pure, ready to be sold directly as high-quality copper raw materials. Simultaneously, the recycled plastic granules are clean and have good recycling value. The entire production line is compact, robust, and durable, maximizing resource value while significantly reducing operating costs:
Overview
Our copper granulator machines are divided into three series: large copper granulator machine, medium copper granulator machine and small copper granulator machine, with output ranging from 40KG/H to 3T/H. Whether you're an individual recycler, a small scrap yard, or a large cable recycling company, you can find the machine best suited to your specific needs.
• 99.9% copper-plastic separation rate and 100% copper purity, maximizing your copper recycling profits.
• 0 pollution, environmentally compliant.
• CE certified, safe for global market operation.
• Processing capacity comprehensively covers the needs of different scales, from individual recyclers to large-scale recycling plants.
Our small cable granulator machine has a compact design, occupies minimal space, and requires no complex installation or debugging. Simply connect a power source and it can operate immediately. Despite its small size, the small cable granulator machine achieves recycling efficiency comparable to medium machines. It effectively processes various types of scrap cables, including square wire, power cable, network cable, and miscellaneous wires, achieving a copper recovery rate of up to 99.9%, indicating you can produce high-value copper granules with the industry's lowest investment cost.
• Processing capacity: 40kg/h - 300kg/h
• Price: USD7000 - USD30000
• Simple operation; one person can operate the machine, saving labor costs.
• Suitable for beginners, individual recyclers, recycling stations with a small quantity of cables, and users with limited budgets or space.
BSGH Granulator medium cable granulator machine has an exceptional performance, perfectly balancing capacity and investment costs. It's the secret weapon to help you quickly earn your machine's cost and generate profits. Our medium-sized machines offer fast processing speeds and strong continuous operation capabilities. The equipment features medium processing capacity and serve longer time. As your recycling business expands, you can also choose to add a pre-shredder to further improve processing efficiency.
• Processing capacity: 300kg/h - 700kg/h
• Price: USD20,000 - USD100,000
• High returns, recoup your costs in as little as one month.
• Equipped with a pulse dust collection system, meeting all national environmental standards.
Large Copper Wire Granulator Machine is designed for large recycling plants and enterprises with large quantities and stable sources of scrap cable. Designed to meet the demands of high-intensity, continuous production, it represents the industry's top level in efficiency, durability, and recycling rate.
Core components are made from high-hardness, wear-resistant steel, ensuring a robust structure, a low failure rate over long-term operation, and proven durability, which minimizes downtime and maintenance costs. Our large machines are comparable to top European brands in separation precision and operational stability, while offering a more competitive price. For large recycling companies seeking maximum capacity and planning for long-term operation, our Large Cable Granulator Machine is the best investment.
• Processing capacity: 700kg/h - 2000kg/h
• Price: USD29999 - USD800000
• Usable for over ten years under normal use and maintenance.
• We offer free factory design, circuit design, and machine placement solutions.
The Advantages Of BSGH Cable Granulator Machine
A best copper granulator machine depends on the purity of copper granules, the amount of copper residue in plastic, power consumption, environmental protection and production costs. BSGH copper cable granulator machine has achieved the top level in scrap cable wire recycling industry, and whatever your need is, you can always find an optimal one here.
100% Pure Copper
After the waste cables pass through the dual separation system of airflow sorting and vibrating table, 100% pure copper granules can be obtained, which can then be used directly as refined copper, earning more profits.
Various Models
BSGH supplies varying cable granulating machines involving small cable granulator, medium copper granulator and large copper cable granulator, as well as mini series, D series and N series, you are certain to find an ideal one.
Easy Operation
Our cable granulator is controlled by intelligent electric cabinet, fully automatic, very easy to operate, only need one person without special training, which can greatly save your labor costs.
Wide Application
The cable granulator machine from BSGH can handle a variety of scrap cables below 25mm, such as household wire, communication wire, feeder wire, square wire and fine wire, totally satisfy your needs.
Main Parts

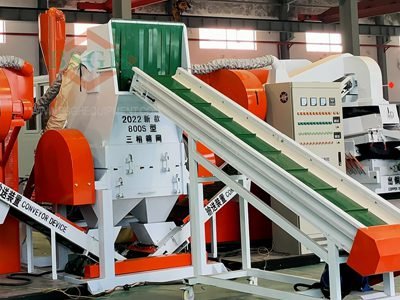

Crusher
Crusher is the main tearing part of the cable granulator machine, which is responsible for cutting the copper wire into small segments of 3-5mm. The blade of the crusher consists of fixed blades and rotating blades, and the specially designed blade structure can prevent the machine from getting stuck. In addition, the crusher blades of some models are made of SKD-11 alloy with high toughness and great hardness, which enables the machine to handle cables of various diameters, without replacing the blades within a year.

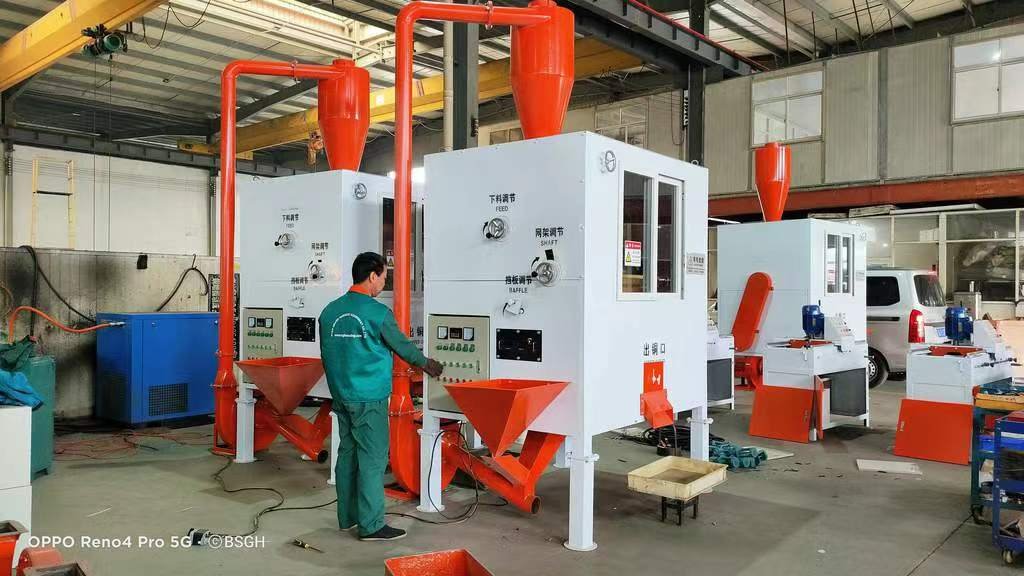

Air Separation System
The air separator is a key component in the separation process, which is responsible for separating the copper granules and the plastic granules. It adopts our newly developed air separation technology, which utilizes airflow blowing upward from the bottom to separate copper granules and plastic granules of different weights. Compared with the separation technology of other machines, our air separation technology is more efficient and can recover pure copper granules more quickly. At the same time, our air separator has smaller power, which can help you save electricity costs better.

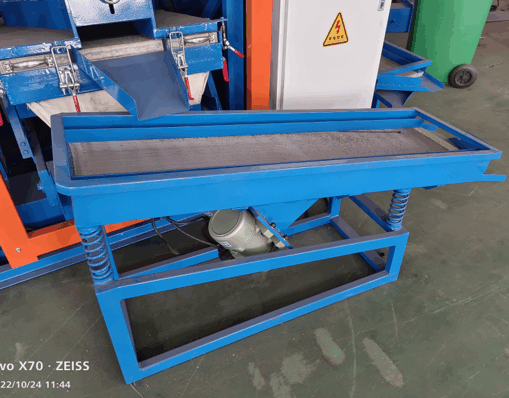

Vibrating Table
The vibrating table is another important separation part of the cable granulator machine and is usually used in conjunction with the airflow separator. It adopts a double-layer structure, each layer is equipped with sieve meshes with different apertures to separate copper granules and plastic granules. After separation by the vibrating table, you can get 100% pure copper granules.
Optional Parts

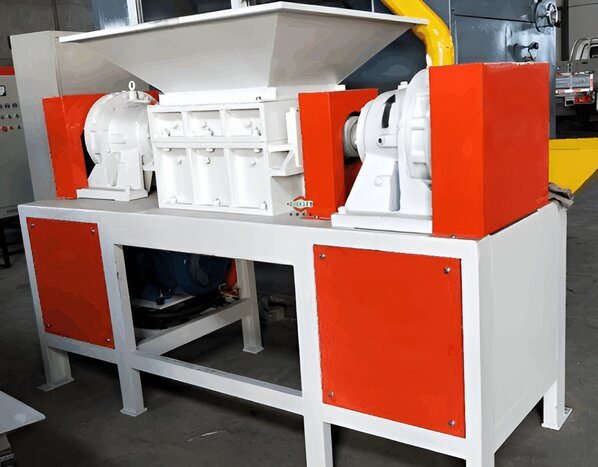

Pre-shredder
The pre-shredder has a powerful crushing system that can effectively help you handle the cables, crushing the copper wire into 5-25cm fragments, which can improve recycling efficiency and protect the main crusher blades. Processed cables are easier to be shredded by main crusher.

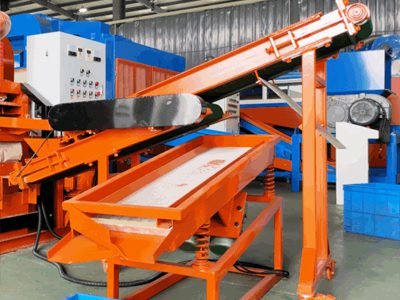

Magnetic Separator
Magnetic separator is an auxiliary device specifically designed for iron-containing cables. Their core function is to precisely separate iron impurities from mixed particles.
When the crushed mixed particles pass through the magnetic separator, all iron blocks and filings are instantly and precisely captured and separated, while copper and plastic pass through smoothly. This crucial process guarantees the final copper granules are free of any magnetic impurities, ensuring 100% copper purity while also allowing for effective iron recovery.
Electrostatic Separator
Electrostatic separator plays a crucial role in processing fine cables with a diameter of less than 2 mm. Because the weight difference between these extremely fine copper wires and plastic particles is negligible, air separators have difficulty completely separating them, which may cause some of the fine copper wires to be mixed into the plastic waste, resulting in copper loss.
Electrostatic separator utilizes the difference in conductivity between copper and plastic to separate the material again before discharge, precisely capturing any remaining fine copper particles. This not only effectively reduces copper loss but also significantly improves the purity of the plastic particles.
What Raw Material Can be Processed?
BSGH cable granulator machines can process a wide variety of cables, including household appliance wires, communication wires, square wires, multi-core wires, automotive loom wires, etc.
New Recycling Business
For those who are new to the scrap recycling industry, it is very important to choose a recycling machine with reliable quality. The small copper granulator machine of BSGH is your best choice. Our small copper granulator machine is of high quality and each machine has undergone strict quality control during the production process. We also have perfect after-sales guarantee service measures to make you worry-free.
Scrap Cable Recycling Plant
If you have a scrap cable recycling plant, you can choose our medium or large copper granulator machine according to the number of cables you have. They not only have high output, but are also very durable and reliable. After the cables are processed by the machine, 100% pure copper can be obtained without loss, then selling at top price in the market, greatly boosting your profits.
1. How to maintain the copper cable granulator machine?
+
-
We recommend to check the blade every two weeks. If the blade is blunt, you can use a sharpener to sharpen it. Also, please frequently clean the air separation net and vibration table net with an air gun to prevent copper granules or plastic particles from adhering to the net and reducing work efficiency.
2. How much power does the cable granulator machine consume?
+
-
Our copper granulator has been continuously updated. We control the power consumption less than about 70% of the machine power, helping you save electricity costs as much as possible.
3. How do I install the copper granulator machine?
+
-
For the small copper granulator, it's integrated type, you only need to connect to the power and it will normal to work.
For the big model, only need to assemble ,we will send you the installation manual, it is very easy to install.
We also supply overseas installation to our customer, but customer need to burden all technician costs.
4. Does the cable granulator machine have CE file report?
+
-
Our machines are all CE certified, and we will also put the CE mark on the machine. When your machine is shipped, we will send you the CE certification and all the documents.
5. Does the copper granulator have to be paid in full at one time?
+
-
When you decide to order our machine, you can pay a 30% advance payment first. After the machine is finished, we will send you a test video to ensure that the machine is operating normally. After confirmation, we will arrange shipment after you pay the remaining 70% of the balance.
6. How do I import a cable granulator machine?
+
-
We will ship the machine to the port closest to you. After the machine arrives, the freight forwarder will notify you. After your agent completes the freight clearance formalities, you can pick up the machine at the port.
7. Why the copper outlet have little plastic? What should I do?
+
-
The suction fan is too windy, you only need to lower the wind speed of the suction fan.
8. What are the worn parts of cable granulator machine?
+
-
The wear parts are crusher blades, crusher screen, vibrating table screen, air separator screen. We will send 3 crush sieves with machine for free and you can purchase several parts as spare use.
9. How can I choose a suitable copper cable granulator machine among so many types?
+
-
According to the wire diameter and capacity requirements, you'd better send us the picture about your scrap cable wire, we will recommend the suitable for you.
10. Can I only buy one part of the cable granulator machine?
+
-
I feel so sorry, generally we do not sell separately, because we have no idea about your other parts so can’t assure the machine working effect. For better efficiency, we suggest you buy 1 entire set.
