1. No extra wiring is required: Just plug in BS-S10 and start working right away;
2. With a footprint of only 1.2 m², BS-S10 fits easily into a corner and saves your workspace;
3. 10kw power offers stronger performance than most small copper granulators on the market;
4. Despite its compact size, BS-S10 homemade copper wire granulator can still achieve up to 99.9% copper recovery, just like a large copper granulator;
5. Processing capacity ranges from 40 to 60 kg/h, depending on your wire type and condition;
6. Affordable price, fit for electricians, small workshops, and entry-level recyclers.

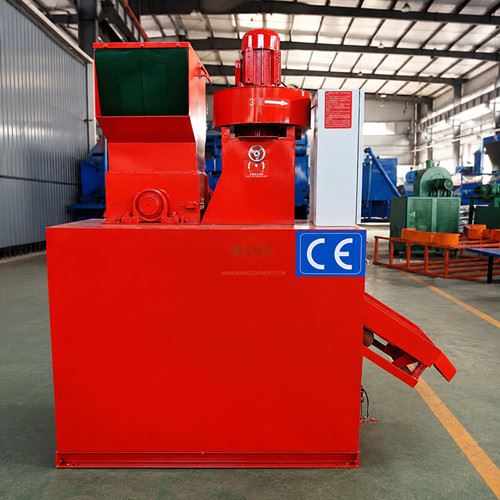

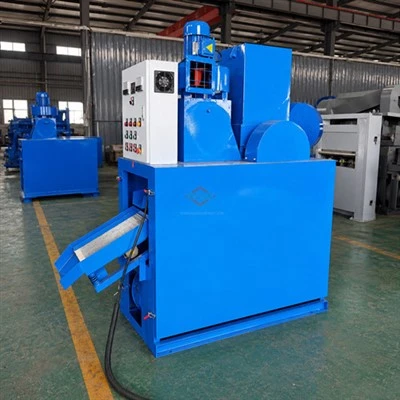

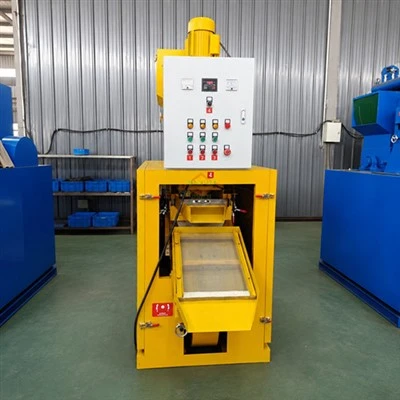

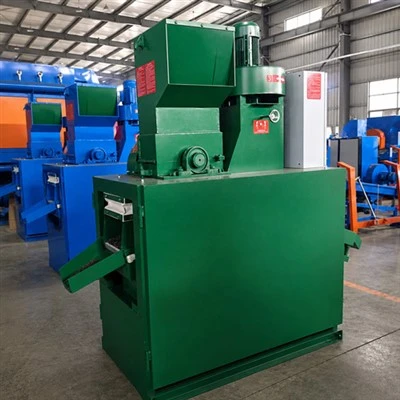

BS-S10 homemade copper wire granulator is a cost-effective solution for crushing and separating scrap cables up to 20 mm in diameter. With copper-plastic separation efficiency of up to 99.9%, BS-S10 turns everyday waste wires into clean, resale-ready copper granules with simple operation and minimal space requirements.
Designed for small scrap yards, workshops, and start-up recycling businesses, BS-S10 runs on single-phase power with a 10 kW motor and offers a processing capacity of 40–60 kg/h. Thanks to its small footprint and low investment, BS-S10 homemade copper granulators becomes a practical entry-level copper recycling machine for you.
Watch BS-S10 homemade copper wire granulator complete its pre-shipment test at our factory before shipping to Janos in Romania.
During the test, scrap net wires are fed directly into the machine, then undergoes crushing and separating in one continuous process. In minutes, clean, bright copper granules flow steadily from the outlet, giving Janos a clear view of the machine's performance before delivery.
More importantly, after several weeks of operation, Janos shared his real feedback:"BS-S10 handles 300 kg in just 4 hours with no trouble at all. Pretty good!"
| Model | BS-S10 |
| Processing Capacity | 40–60 kg/h |
| Recommended Wire Diameter | Below 20 mm |
| Power Supply | Single-phase 220 V / Customized |
| Total Rated Power | 10 kw |
| Crusher Motor Power | 4 kw |
| Dust Collection Power | 4.4 kw |
| Crusher Blade Configuration | 4 moving blades + 2 fixed blades |
| Crusher Sieve Diameters | Ø2.5 / Ø3.0 / Ø3.5 / Ø4.0 mm |
| Vibrating Screen – Copper Side | 16 mesh |
| Vibrating Screen – Plastic Side | 30 mesh |
| Machine Dimensions (Before Packing) | L1550 × W740 × H1750 mm |
| Machine Dimensions (After Packing) | L1580 × W940 × H2080 mm |
| Net Weight | 500 kg |
| Gross Weight | 850 kg |
BS-S10 home-use copper granulator machine combines crushing, air separation, dust collection, and a shaking table in one compact unit. Each system works together in a continuous process to separate scrap cables into clean copper and plastic granules, making it a practical solution for small-scale cable recycling.
1. Main Crusher
4 moving blades and 2 fixed SKD-11 steel blades work together to crush wires into small, uniform particles.
2. Air Separation System
The suction fan inside air separator creates adjustable airflow to separate heavier copper granules from lighter plastic particles, helping achieve a cleaner and higher-purity copper output.
3. Dust Collection System
Dust generated during processing is collected through a connected filter bag, helping keep the working area cleaner and reducing airborne dust.
4. Shaking Table
The shaking table performs a secondary separation of copper and plastic through vibration, helping recover remaining copper particles and improve overall separation efficiency.
5. Electric Control Panel
The centralized control panel brings the main machine functions together in one place, making daily operation simple and convenient.
BS-S10 homemade wire granulator is designed for simple, plug-and-play operation. Once connected to the power supply, you can start recycling scrap wire with the easy-to-use control panel-ideal for beginners and small recycling businesses.
2. Make Better Use of Your Workshop Space
With its compact footprint, BS-S10 fits easily into small workshops, garages, or even a workshop corner, helping you make better use of limited working space.
3. Affordable Price
BS-S10 offers a cost-effective way to start copper wire recycling. With a relatively low investment, you can turn scrap wires into clean copper granules and recover more value from your cable scrap.
4. Less Downtime, Lower Maintenance
Wear-resistant SKD-11 blades provide long service life and reliable cutting performance, helping reduce blade replacements, maintenance downtime, and operating costs.
BS-S10 copper cable granulator is designed for simple and reliable operation. Please follow the steps below to ensure your machine operates smoothly and achieves optimal separation results from day one.
1. Start
Check that all components are in good condition. Run the machine without load for 5–10 minutes to verify normal operation.
2. Feed Scrap Wires
Please clear the iron from scrap wires, get the crusher started, and infeed according to main crusher's capacity.
3. Crushing
Wires are processed into small particles.
If you hear unusual noise or notice excessive heat, stop the machine and inspect the crusher, blades, and screen before restarting.
4. Separation
After crushing, mixed materials are transferred to double separation systems, where airflow and vibration table separate copper granules from plastic.
Proper blade clearance is important for efficient cable granulation, consistent particle size, and longer blade life. Regularly inspect the fixed and rotating blades and adjust the clearance when cutting performance begins to decline.
1
Front Fixed Blade
2
Rear Fixed Blade
3
Rotating Blades
BS-S10 homemade copper wire granulating machine is ideal for turning scrap cables under 20 mm, including household wires, network cables, communication cables, and other common insulated copper wires into pure copper and plastic granules.
Note: BS-S10 can not handle bulk of plug wires or car wire harness.
To ensure safe delivery, your BS-S10 homemade copper granulator machine is securely packed in a reinforced wooden crate for sea freight. so that you can receive well-protected and undamaged machine then put into operation soon.
Q1: Can BS-S10 homemade copper wire granulator process cables with plugs or connectors attached?
A1: No. Please remove all plugs, connectors, and metal fittings before feeding cables into BS-S10 homemade copper wire granulator, which can prevent blade damage and keeps the crushing system running smoothly.
Q2: Does BS-S10 homemade copper wire granulator make a lot of noise when it's running?
A2: No. Our BS-S10 homemade copper wire granulator operates at a sound below 50 dB under normal conditions, helping keep noise levels manageable for smaller workshops.
Q3: What should I do if I see plastic mixed with the copper output from BS-S10 homemade copper wire granulator?
A3: If plastic is mixed with the recovered copper, fine-tune the separator airflow, vibration frequency, and dust-extraction airflow until you achieve a cleaner separation.
