As a leading scrap recycling machine manufacturer in the recycling industry, the BSGH Granulator is always pursuing the development of more advanced separation technology. In the past years, we have developed the following advantages:
Long History
Over 25 years of sales and manufacturing experience.
Complete Product Series
Wide product sales range, serving many customers.
High Technology
Have advanced manufacturing technologies in recycling machine.
Cost-effective
Cost-effective machine for all customers.
What Is Radiator Recycling Machine?
The radiator is a cooling device used in refrigerators, car engines and other machinery and equipment. Every year, thousands of scrap refrigerators and scrap cars are waiting to be recycled in recycling stations around the world. At present, "metal recycling and reuse" has always been a topic of great concern. Limited resources force us to pay more attention to the recycling of scrap materials. Scrap radiators are mainly made of aluminum, copper and iron, and have very high recycling value. Therefore, the radiator recycling machine came into being.
The radiator recycling machine is a simple but highly efficient scrap radiator recycling equipment that achieves dual recovery of aluminum and copper by stripping the aluminum foils off the copper tubes. The radiator recycling machine of BSGH Granulator can process scrap air conditioner radiators, scrap water tank radiators and scrap car radiators, etc. The radiator recycling machine of BSGH Granulator, with low investment and high benefits, is easy to operate and the recovery rate of aluminum foils and copper tubes from scrap radiators can reach 100%. After continuous technology upgrading and product updating, we provide three radiator recycling solutions: wire stripping radiator separator, radiator recycling line and aluminum clad iron radiator recycling machine.

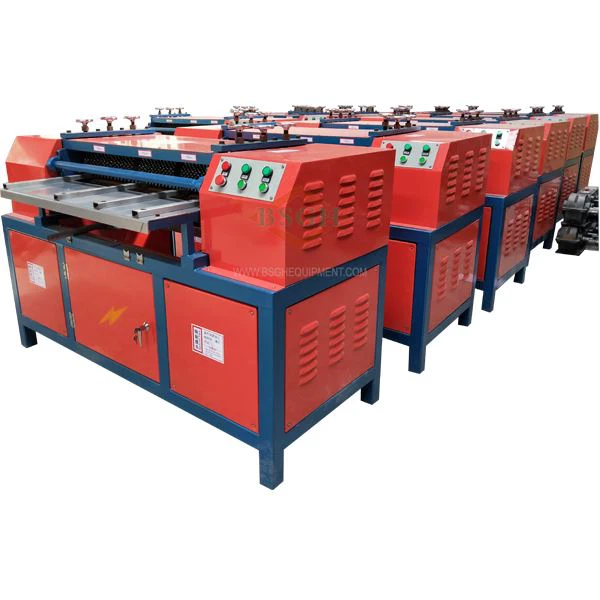

Semi-automatic Radiator Stripping Machine
Semi-automatic radiator stripping machines of BSGH Granulator mainly include BS-1200P radiator stripper machine and BS-1200S radiator stripper machine. These two machines are very easy to operate and can quickly separate the copper tubes and aluminum foils of the radiator without damaging the metal materials. Most importantly, the purity of separated copper tubes and aluminum foils can reach 100%, and can be directly packaged and sold without any other processing. In addition, no powder is produced in the machine processing, so you don’t have to worry about environmental issues.
The Raw Materials Of Semi-automatic Radiator Stripping Machine
The semi-automatic radiator recycling machine of BSGH Granulator is widely used in the disassembly and separation of copper and aluminum cooling devices inside scrap air conditioners, scrap water tanks, and scrap cars. The semi-automatic radiator recycling machine can process 1-2 layers of radiators directly and separate them into copper tubes and aluminum foils. If your radiator has more than two layers, you can use a band saw to cut the radiator into 1-2 layers before recycling.
If you need a band saw, please contact Jocy Whatsapp or Wechat 86 13772508206.
Easy operation
You only need to align the edge of the radiator with the left side of the thermovent, and then push the radiator into the feed port. The feed gear will firmly clamp the radiator and automatically complete the entire separation process.
High processing efficiency
The semi-automatic radiator recycling machine of BSGH Granulator has a very powerful processing capacity, and the perfect blades structure can make the machine's production efficiency reach 3T/Day - 5T/Day.
Price favorable
The two semi-automatic recycling machines of BSGH Granulator are very affordable, and you only need a small investment to get a huge return.
Wide processing range
The radiator recycling machine of BSGH Granulator can process a wide range of copper tube center distances. We can process radiator materials with center distances of 17.5mm, 19mm, 21mm, 22mm, and 25 mm. Of course, we also support customized services. If you have requirements for other sizes, you can contact us and we will customize them for you.
Small and power-saving
The two semi-automatic radiators of BSGH Granulator are very small in size. While ensuring processing efficiency, we have optimized the machine structure and reduced the motor power, thereby reducing power consumption and helping you save more electricity costs.
Completely environmentally friendly
The radiator recycling machine of BSGH Granulator does not generate any dust during the processing, so there is no need to worry about environmental issues.
Before use
For radiators with more than two layers, first use a band saw to cut the radiator into 1-2 layers, then use a band saw to cut the radiator into the appropriate width according to the size of the machine's feed port.
In use
When the machine is running, the edge of the radiator should be aligned with the edge of the feed port to ensure that the processed radiator is fed into the feed port along the guide ruler.
After use
After every four hours of operation, the machine should be stopped for cooling and lubricating oil should be injected into the oil hole. This will not only improve the working efficiency of the machine, but also extend the life of the machine.
The fully automatic radiator recycling line of BSGH Granulator is specially designed to separate and recycle radiators from large vehicles or air-conditioning systems. It mainly includes three radiator recycling machines: BS-1200, BS-ACP100, and BS-2000. Our fully automatic radiator recycling line adopts dry physical separation technology and is made of high-quality materials. It can efficiently recycle copper, aluminum, iron and other materials in the radiator through crushing, air separation, magnetic separation and other methods. The machine's output ranges from 1.5T/H to 3T/H.
Different models of radiator recycling machines have similar components, but there are differences in the number of parts. The fully automatic radiator recycling machine includes pre-shredder, main crusher, air separation, magnetic separation, dust collection device, vibrating table and other components, which can help you recycle radiators more efficiently.
Pre-Shredder
Pre-shredder can cut the radiator to reduce its size and prepare it for the next main crushing process.
Vibrating Table
The vibrating table is our second stage separation equipment. It has a double-layer structure with upper and lower layers and is equipped with sieve mesh of different apertures to separate copper tubes and aluminum foils.
Crusher
The processed radiator are crushed for the second time to become 5-25cm fine materials, such as aluminum, iron, copper etc., which are convenient for the next separation operation.
magnetic separation
There may be a small amount of iron mixed in the radiator, which will eventually affect the price of the material transaction. The magnetic separation can utilize the magnetism of the magnet to absorb the iron, ensuring that pure copper tubes and aluminum foils can be obtained.
Air separation
Air separation is the first stage separation equipment, which blows air upward from the bottom of the sieve mesh to separate the copper tubes and aluminum foils according to the different weights.
Dust Collection
The fully automatic radiator recycling lines of BSGH Granulator are equipped with dust collection devices, which will collect suspended dust during the entire radiator recycling process to reduce environmental pollution.
The Advantages Of Automatic Radiator Separator Line
Large Processing Capacity
Multiple components work together to greatly increase the processing capacity, and a large number of radiators can be recycled at one time, with an output of 1.5T/H to 3T/H, far exceeding similar products on the market.
Intelligent Control System
The radiators recycling lines are equipped with the latest generation of PCL intelligent electronic control panels, which can easily control the machine, and also come with monitoring and alarm functions to help you check the operating status of the machine.
Multiple Separation System
The multiple separation system improves the metal recovery purity and eliminates material loss. The purity of separated copper, iron and aluminum can reach 99%, avoiding the manual selection process.
High-quality Accessories
The pre-shredder is equipped with a high-power motor to achieve a large torque, which can cope with various radiator materials. At the same time, the blades of the pre-shredder and crusher are made of specially treated stainless steel blades, which have high hardness and toughness and can be used for one year without replacement.
Wide Processing Range
The fully automatic radiator recycling line can process all types of radiators on the market, regardless of the number of layers of raw materials or whether the raw materials have regular shapes. Simply put the materials on the conveyor belt or pre-shredder box, and the recycling can be completed in one turn.
Dust Collection
The radiator recycling lines are all equipped with dust collection devices, which can fully absorb the dust generated during the radiator crushing process, providing you with a healthier working environment.
Both the wire stripping radiator recycling machine and the large radiator recycling line can separate and recycle radiators, and they are both high-quality machines, but there still exists some differences:
Conclusion:
If you don't have many regular radiators material and your budget is limited, the wire stripping radiators can help you recycle metal materials and save labor and electricity costs. If you have a sufficient budget and have larger processing needs, the large radiator processing line is your best choice.
Aluminum Clad Iron Stripper Machine
The aluminum-clad iron radiator recycling machine of BSGH Granulator is specially designed for aluminum-iron radiators. It can efficiently separate the aluminum foils and iron tubes of the radiator. It mainly includes BS-ACS15, BS-ACS20, and radiator separator machine, etc.
What Can It Handle?
It can efficiently process aluminum-clad iron radiators, aluminum-clad scrap heat pipes, household radiators, old wall radiators, etc.
It can efficiently process aluminum-clad iron radiators, aluminum-clad scrap heat pipes, household radiators, old wall radiators, etc.
High quality
Our machines are made of high-quality metal materials. Whether in terms of durability or corrosion resistance, our machines can give you reliable protection.
High efficiency
The aluminum clad iron recycling machine of BSGH Granulator has powerful performance, can process two meters of radiator per minute, and is very easy to operate, which can greatly improve your production efficiency and help you maximize profits.
Multiple functions
The aluminum-clad iron recycling machine of BSGH Granulator can not only recycle aluminum-iron radiators, but also process cables. It is very suitable for customers with a wide variety of raw materials.
Quality guarantee
The aluminum clad iron recycling machine of BSGH Granulator undergoes high standards of quality control in every step of the production process, and will undergo strict quality inspection and machine testing before leaving the factory to ensure that the machine received by the user is perfect.
