1. Our heavy duty copper cable granulator processing capacity up to 2-3T/H, belongs to industrial-grade equipment.
2. BS-A1300 can handle almost all scrap cables with a diameter under 30mm.
3. Through "double crushing + multi separation" process, copper-plastic separation rate reaches 99.99%. The recycled copper granules are bright, 100% pure, and free of impurities, maximizing your profit.
4. Machine body is built from thick, high-strength steel, key components are highly wear-resistant, making ensure over 10 years lifespan.
5. It supports forklift feeding, which greatly improves feeding efficiency, reduces manual intervention, and lowers labor costs.
6. Unique model on the market, BSGH Granulator holds the invention patent.
BSGH Granulator's heavy duty copper cable granulator BS-A1300 is suitable for very large recycling stations. Similar to our other cable granulator machine, its core function is to efficiently crush and precisely separate copper from various types of scrap cables. Differently, the patent copper granulator can process 3 tons waste cables per hour, greatly solving your piles of scrap and increasing recycling efficiency.
Our best cable granulating machine integrates main steps such as pre-shredding, crushing, magnetic separation, air separation, and vibrating screens, and can continuously process various cables with diameters up to 30mm, including automotive wiring harnesses, communication cables, and ferrous cables.
In October 2024, US customer Kevin imported BS-A1300 heavy-duty copper cable granulator from BSGH Granulator. Below is a feedback video he filmed after receiving the machine.
Machine model: BS-A1300 heavy-duty copper cable granulator for sale
Customer from: USA
Processing capacity: 2000-3000KG/H
Power: 312kw
Kevin primarily handles communication cables, household cables, and miscellaneous wires. Look at the hopper autumatically feeding scrap cable, only need one worker pick few iron, within a few minutes, discharge 100& clean and bright copper, sold at a high price, meanwhile, smooth process from crushing to separation, without any jamming or blockages. Furthermore, the entire line is equipped with a dust removal system, resulting in virtually no dust on-site. Kevin stated that after using BS-A1300, his cable processing efficiency has greatly improved, while his labor input has decreased, and overall profits have exceeded his expectations.
| Model | Heavy Duty Copper Cable Granulator BS-A1300 |
| Processing Capacity | About 2-3 Tons / Hour |
| Separation Rate | ≥99.99% |
| Total Installed Power | About AC About 312KW |
| Voltage | 380V/440V/480V or Customized |
| Maximum Feed Size | L≤50MM, ∅30MM |
| Weight | 20T |
| Space Requirements | L1600*W800*H500MM |
Our BS-A1300 factory direct sales copper cable granulator machine mainly consists of a single-shaft pre-shredder, main crusher, magnetic separator, air separator, and vibrating tables.
Single-shaft pre-shredder: Adopting a single-shaft hydraulic drive design, it can uniformly shred various cables to 6-15 cm for subsequent crushing and separation processes, effectively protecting the main crusher blades and improving overall recycling efficiency.

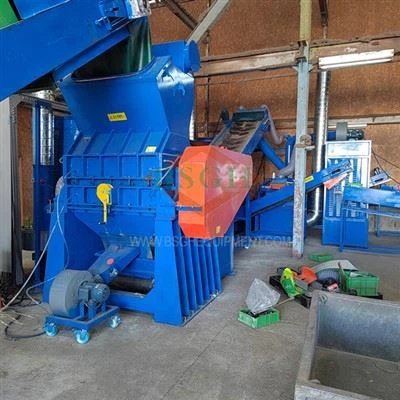

Main crusher: The main crusher is mainly used to further crush cables to 3-5mm to ensure more thorough separation of copper and plastic in subsequent sorting processes.
Magnetic separator: Specifically designed for processing scrap cables containing iron. Its core function is to completely separate all iron from the mixed particles, ensuring that both copper and iron are ultimately fully recycled.
Air separator: The core equipment of the separation system, mainly responsible for the initial separation of the copper-plastic mixture. It can efficiently separate most copper particles from the plastic particles by wind power and gravity.
Vibrating table: Performs secondary separation of copper-plastic mixed particles. Through high-frequency vibration screening, it can completely remove the residual plastic from the copper particles. After this process, you will obtain 100% pure copper.
Pre-shredder is the first step in entire granulating cable system, responsible for initially reducing waste cables volume, making waste cable better crushing and protect main crusher. It adopts a "single-shaft + hydraulic pusher" structure, automatic and powerful.
The square blade hook design effectively prevents the machine from getting stuck when too much material in the crushing chamber, and it supports forklift loading.
The hydraulic drive system provides stable and strong torque, ensuring smooth shredding even when handling thicker and harder cables, without jamming or clogging.
Our special hydraulic push rod applies pressure from top to bottom, ensuring that each push rod movement effectively pushes the cable to the blades, avoiding the empty pushing that is common in horizontal pushing.
Compared to ordinary dual-shaft machines, our single-shaft pre-shredder can pre-shred cables to a smaller size of 6-15cm, ensuring efficient operation of the subsequent main crushing, reducing the load on the main crusher and protecting its blades.

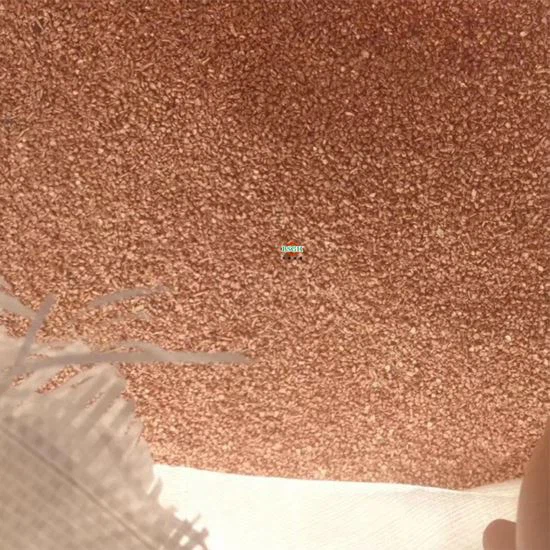

Our hot sale copper cable granulator machine BS-A1300 handle a wide range of scrap cables into 100% clean copper and plastic granules.
To ensure your heavy duty copper cable granulator BS-A1300 arrives in flawless condition, we employ a professional, multi-layered logistics steps:
Q1: Are you a factory?
A1: Yes, we are a copper cable granulator manufacturer, and all our machines are shipped directly from the factory.
Q2: Can the BS-A1300 heavy-duty copper cable granulator handle aluminum core cables?
A2: Yes, our BS-A1300 also works well with aluminum cables.
Q3: Can the copper cable granulator machine process copper and aluminum wires at the same time?
A3: No, because the weight difference between crushed copper and aluminum granules is very small, the big copper cable granulator cannot completely separate them. If you need to process both copper and aluminum wires, please feed them into the machine separately.
Q4: Can I freely choose the material of the copper cable granulator's blades?
A4: Yes, we support flexible blade customization, and the more you order, the better price is.
