BS-FB is mainly for small wire stripping,it can strip both side at the same time.
1:a row of symmetrical cable entry holes on both sides of the machine.
2:It has 2 monofilament crimping holes and 13 blade holes.
3:stripping diameter range is 1.5-18mm.
Automatic Cable Stripping Machine Introduction
This machine is a wire stripping machine specially developed by our company for stripping small wires. It has 2 monofilament crimping holes and 13 blade holes to make the function more subdivided and suitable for all kinds of wires, thus making various rubber cables easier After being stripped, its stripping diameter range is (1.5-18mm). So that the stripping function is greatly enhanced, making the function of each entry hole more subdivided.
Machine Structure Feature
There is a row of symmetrical cable entry holes on both sides of the machine, allowing one or two workers to work at the same time, which can greatly increase efficiency and save electricity.
Machine Technical Data
| Model | BS-FB cable stripping machine |
| Power | 1.5KW |
| Voltage | 220V/380V |
| Gross Weight | 90KG |
| Net Weight | 75KG |
| Physical dimension | 550*510*840 MM |
| Capacity | 100-200 KG/Day |
| Wire stripper range | 1.5-18 MM |
Cable Stripping Machine Work Step
When machine connect with power, press the switch to turn off machine.
Second step is adjust the blades distance with adjusters to match cables diameters.
Finally Put cables into suitable feeding holes to processing.
All Kinds of Electric Wires for Automatic Cable Wire Stripping Machine
|  shielded wire |  plastic wire |

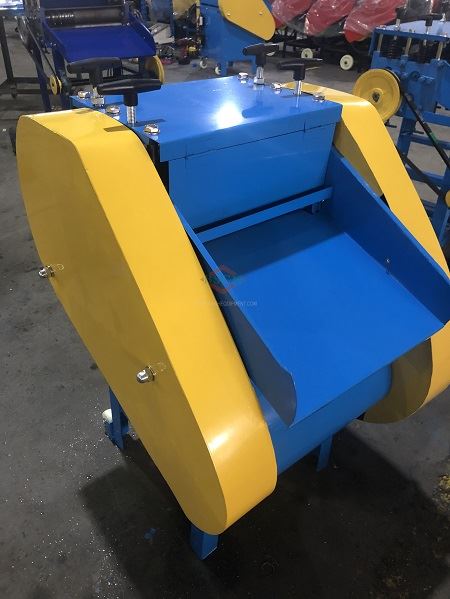

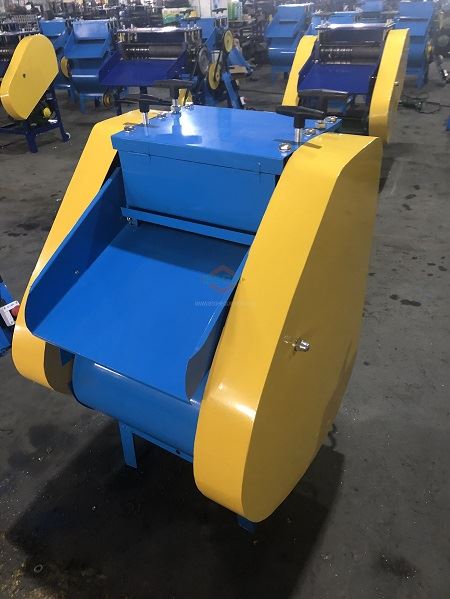

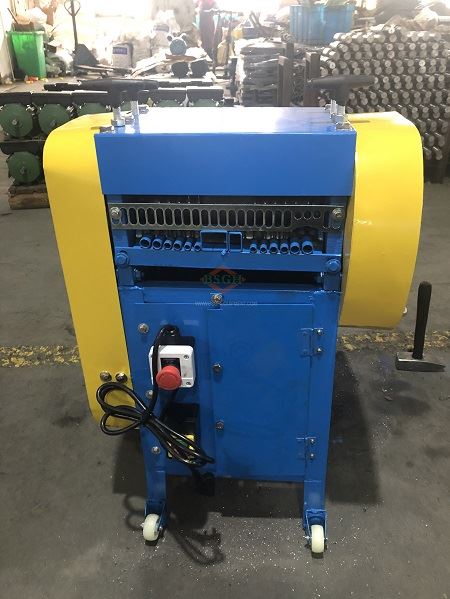

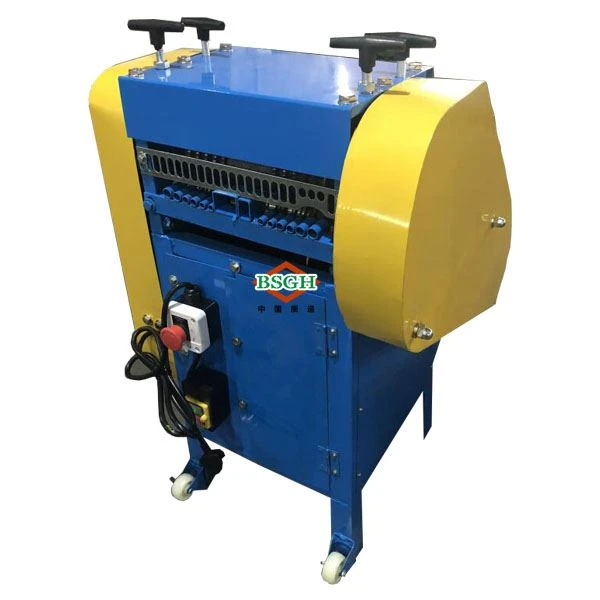

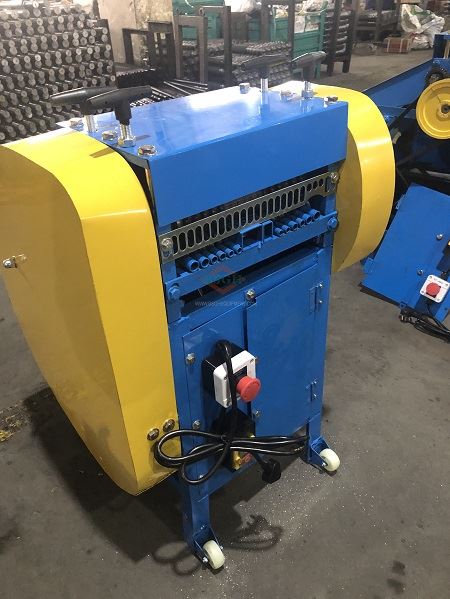

BS-FB Automatic Cable Stripping Machine Different Angles
 |  |
 |  |
BSGH EQUIPMENT Aftersale Service
1: Overseas technical support available.
2: All day long 24hours service,call me : 008613772508206.
