1. Plasma compressor case cutting machine only needs about 15-20 seconds to remove outer shell, significantly improving your compressor recycling efficiency;
2. The fully automatic design eliminates operators safety risk to approach the cutting nozzle or high-temperature areas;
3. The entire cutting process achieves in an enclosed space, ensuring operator safety;
4. Intelligent adaptive cutting allows a precise up and down cut in one pass;
5. Suitable for compressors with lengths of 15-55cm and outer diameters of 12-26cm, fully meets your needs;
6. Custom-made for the size, color, logo, voltage and phase;
7. Handle different shapes of scrap compressor such as round, flat, long or square even irregular;
8. One-year warranty.
Our plasma compressor case cutting machine is a highly efficient, automated cutting solution for scrap compressor dismantling companies. Adopting plasma technology, BSGH compressor shell cutter machine can quickly and precisely remove the hard steel casings, suitable for disassembly various types of compressors, mainly come from air conditioners, refrigerators, automobiles, and industrial refrigeration systems, no matter round, flat, long or square, it can handle at ease.
BSGH plasma compressor shell cutter uses smart numerical control and servo motors to intelligently detect and control the cutting nozzle, automatically adjusting the distance between the nozzle and the compressor so that you can achieve precise cutting without damaging internal inner copper windings, maximum your scrap value.
| Model | Plasma Compressor Case Cutting Machine |
| Process Range | Length:150-550mm |
| Diameter:120-260mm | |
| Power | 13KW |
| Weight | 560KG |
| Voltage | 380V Or Customized |
| Machine Size | |
| Plasma Cutting Part | 1250*800*1750mm |
| Dust Collector Part | 800*900*1600mm |

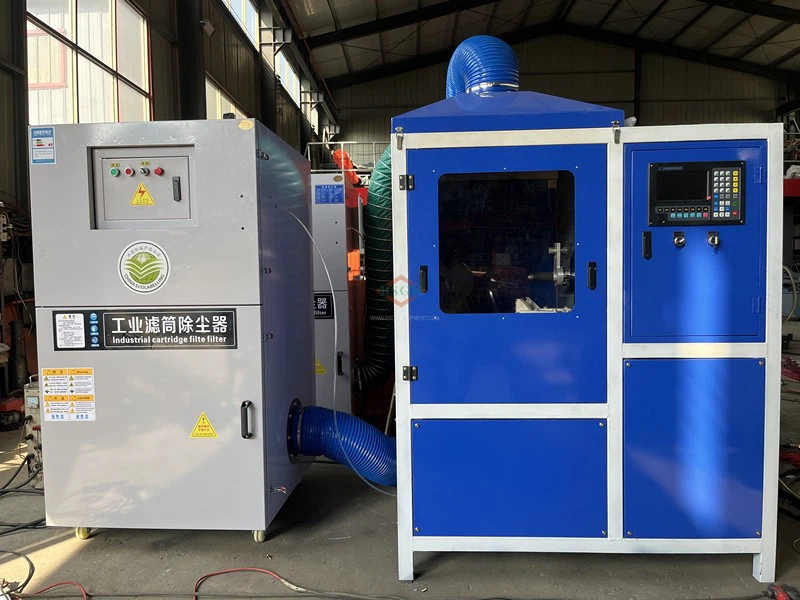

Our plasma compressor case cutting machine mainly consists of the main unit (cutting equipment) and an industrial dust collector. You can choose to purchase the entire machine, or just the main unit and connect it to your own dust collection equipment. The Host part is made up of control panel and main chamber, please check more below:
Control panel centralizes all parts, enabling operators to set specific cutting parameters and control machine start/stop, reaching an easy and accurate cutting for different sizes of compressors. Although there are many buttons and a display screen, do not worry, we have manual user and professional team to help you.
Working chamber is the core area for plasma cutter operations, It has four clamping jaws and nozzle part in a sealed enclosure with a transparent observation window, the gripper is driven by pneumatic force gripper, keeping a safe isolation during the working process while allowing for real-time monitoring of the operation status.
Industrial dust collector is connected to the main unit via pipes. It is mainly used to collect dust generated during the cutting process, preventing environmental pollution and making sure our plasma compressor case cutting machine meets global environmental standards.
Note: if you have, just buy main part, if not, we can assemble for you.
Background: In February 2025, an American customer ordered this plasma compressor case cutting machine from us. Below is a test video we recorded in the factory before shipment.
Machine model: Plasma Compressor Case Cutting machine
Power: 13KW
Processing range: Length 15cm-55cm, Diameter 12cm-26cm
As you can see, the operator simply places the compressor correctly into the machinethe cutter, and it automatically cuts through the steel casing in approximately 15-20 seconds. The cutting efficiency is 3-4 times than traditional blade-cutting equipment. Also the enclosed design keeps labour's hands away from the cutting area, guarantee high safety. Obviously, whole cut is fast and precise, and the internal copper windings remain intact, providing strong support for subsequent high-value recycling.
Step 1: Turn on the industrial dust collection equipment and ensure the dust removal system is operating normally. Place the compressor in the center of the rotary table and use the gripper switch to firmly clamp it.
Step 2: Control the cutting nozzle to rise or fall until it reaches the desired position.
Step 3: Press "start" and "enter" to enter fully automatic cutting mode. The rotary table rotates at a constant speed, and the plasma cutting nozzle adaptively tracks the cutter, requiring no manual intervention throughout the process.
Step 4: After cutting, the nozzle will stop immediately to avoid waste and will automatically reset. Switch the gripper control switch to the "release" position to remove the compressor with its outer casing cut open.
1. The position of gun head can be set, realizing adapative handling different compressors.
2. Arc voltage detection and control is carried out through intelligent CNC and servo motor, achieving a whole inspection during machine working.
3. The distance is automatically fine-tuned, so that the gun head can adaptively follow the appearance of the material for cutting, and can stop immediately after the material is interrupted.
4. Pneumatic force gripper ensures clamping jaws a continuous and stable clamping force (users need to bring their own air pump).
Note: When compressors are uniform, there is no need to frequently set the gun head height. You can cut more quickly.

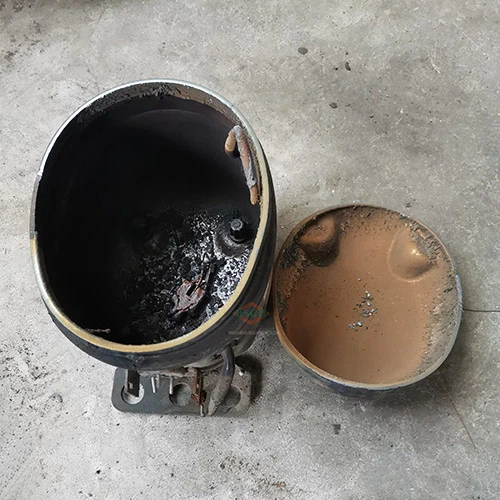

BSGH plasma compressor case cutting machine can remove outer casing without harm, leaving only separated shell and copper coils.
Customer Evaluation
Mr. John Wilson
Recycling Operations Director
Dr. Ahmed Khan
Senior Environmental Engineer
Ms. Elena Petrov
Chief Operations Officer
Q: Can I use this plasma compressor shell cutter if there's oil inside?
A: If much oil, we suggest you drain the oil first, then use our plasma compressor case cutting machine to process it, if just a little, it doesn't matter.
Q: What are the worn parts of plasma compressor case cutter machine?
A: Only the cutting nozzle. We recommend you buy more cutting nozzles for a long-term use.
Q: Is the plasma compressor casing cutting machine safe?
A: Yes, our plasma compressor casing cutting machine stands out in a fully enclosed cutting structure and is equipped with an emergency stop button to ensure operator safety.
Q: Can I use your plasma compressor case cutting machine to process regular motors?
A: No. Plasma compressor case cutting machines are designed specifically for compressors. If you need to process regular motors, we recommend our BSM-50 motor cutting machine.
Q: Will the plasma compressor case cutting machine catch fire?
A: The spark will extinguish itself upon contacting with air, it will not catch fire.
Q: Is your plasma compressor case cutter friendly to the environment?
A: It has the dust collection system, so totally pollution-free, no need to worry.
