1:dry crusher, strong magnetic roller separator and air separator, the waste radiator is crushed and sorted.
2:The whole process is carried out in negative pressure.
3:The equipment is prepared with 2 big crusher and 2 air separation bed,preprocessing equipment and other necessary parts.
4:Raw material will be pre-crushed in the first cruhser,after second crusher will become fine material of aluminum, iron, copper and then by the strong magnetic roller and air separator.The pulsed dust removal system is configured in the process of crushing and sorting to effectively solve the dust emission.
Water Tank Radiator Recycling Plant Introduction
BS-2000 water tank radiator recycling plant has been designed by BSGH EQUIPMENT technicians to grind and refine waste material coming from car water tank and industrial radiators, to have high performances and get the maximum profit from the separated metals. scrap Radiators'treatment requires a powerful shredding and an accurate material selection, which will increase the value of the processed goods also gives our machines the capability of processing huge quantities of material with less smaller power-units.
BSGH plants for radiators processing have to be simple to use and to maintainance. This is the philosophy that lead us when designing our machines.
The control panel has to be easy and user-friendly, allowing customers to manage the production at its best in time, having direct control on the whole plant.
Whole Radiator Recycling Plant Technical Data
| Model | BS-2000 |
| Range | All kinds of radiator |
| Weight | 17800KG |
| Power | 1800KW |
| Size | 17.5*9*4.5M |
| Voltage | customized or 3 phase |
Working Procedures&Features
BS-2000 Radiator harmless separating and recycling plant is our new big plants.
Our radiator recycling machine adopts dry-type crusher, magnetic separator and air separator to break and separator the radiator, turning the radiator into copper, iron and aluminum, the whole process is conducted in negative pressure.
Fully automatic easy operate, 2-3 labor can process it well.
Our Scrap Radiator Crusher machine can process 1.5-2 Ton/h scrap radiator , very high efficiency.
Radiator Recycling Machine Processing Program
Water Tank Radiator Recycling Plant needs hand feeding and inside hard material, such as chunks of iron or large screws,shafts,should be picked out in advance, then offer first crushing and second crushing, aluminum, iron and copper are taken off, at last, magnetic separator and air separator separate aluminum, iron and copper.
Pulse dust catching system is allocated in crushing and separation part, effective solution to the dust discharge, the crushing and separation system is equipped with pulse dust collector system, so the dust problem can be solved.
Regional Drawing of Radiator Recycling Plant
 BS-2000 water tank radiator recycling machine view |  Customer visit radiator recycling plant |
All kinds of Radiators and End Products

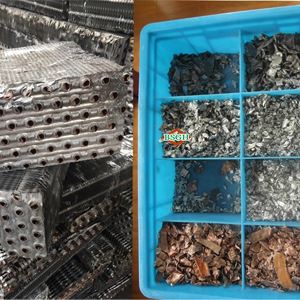

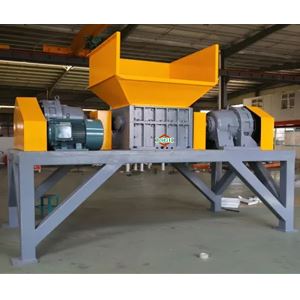

 Used Radiators |  Radiator and end products |  optional dual shaft shredder |
BSGH EQUIPMENT Aftersale Service
1: Overseas technical support available.
2: All day long 24hours service,call me : 008613772508206.
