Telephone Wire Granulator and Separator Machine

1: Recycling copper from scrap wires, save time and labor cost, suitable for copper cable and aluminum cable;
2: BS-D10 wire granulator and separator machine with pre-shredder cutting wire into small pieces(5-25cm), improving processing capacity;    3: Competitive price and best cost performance for making money for you;
4: Equipped with national standard pure copper motor and high-end imported SKD-11 alloy blades to extend the service life of the machine;
5: CE certification approval;
6: Overseas technical support available and all day long 24-hour service, call me: 008613772508206.

Machine Introduction:

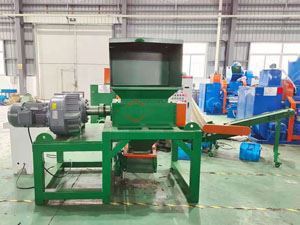

1. BS-D10 Telephone Wire Granulator And Separator Machine with two-shaft shredder are mainly to supply customers whose demands  are less and who want cheap price, with an efficient system for processing about 200 kg/h of scrap cable. It may be a small, compact unit, but it's able to handle the finest of wire and cable and can achieve 99.9% separation of metals from plastics.

2. Low power motor 24kw, voltage 380V/220V or customized.

3. Process scrap copper wire diameter range below 25mm.

4. Machine equipped with 2 fixed blades and 5 moving blades. Blades use unique raw materials.

5. High separation rate 99.9% help you get bright copper and pure plastic granules.

6. Simple operation, saving human resources.

7. The BS-D10 copper separator machine is a environment-friendly.



Machine Parameters:

Cable separator machine BS-D10 with two-shaft shredder parameters
Processing Diameter 0.2-25mm
Machine Size 2230*1600*2000mm
Machine Weight 1800KG
Gross Weight 3000KG
Voltage 380V/220V or customized
Capacity 100KG/H
Crusher Power 11KW
Motor Power 24KW



Machine Different View Pictures:

cable separator machine copper recycling machine wire granulator machine



Final Products:

copper rice

Copper rice

  plastic granules

Plastic granules



Machine Construction:

feed part

Feeding part

  Copper outlet

Copper outlet



plastic outlet

Plastic outlet

Machine Part Details:

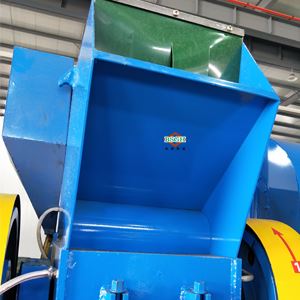

■Feeding Hole:

It's dry-type copper recycling machine, and you can process the waste wire directly.

■Copper Outlet:

Separated by inside vibration and then will be sent out to secondary separation.

■Vibration Sieve:

This is machine's separation part for separating pure copper granules and separation rate will reach 99.9%.



Operating Steps:

1) Start:

Please confirm all the plants are in good condition and have an earth connection.

Please clear up excess stock before getting plants started, no load for 5-10 minutes.

The No. on control panel should match to the part on machine with mark No.

2) Infeed:

Please clear up iron from composite cables, get shredder and crusher started, then infeed according to shredder's capacity.

3) Fine crushing:

Crushing and separating cables come from number 2 conveyor, if any abnormal noise, please stop and open the crusher, inspecting or changing screen, if any plant run hot, please stop it and check.

4) Vibrating and separate:

1. Scrap stuff after crushing, material will be delivered to separator via feeding fan.

2. Copper from Vibrator is complete copper, the copper from feed opening needs second crushing.



Note: if problem in separating, terms of the settlement:

if see plastic in copper granules, please adjust wind power of the Vibrator, bottom wind power, adjust vibration frequency, and wind power of dust absorption.

1) If there still has plastic in copper, please check filter screen, and please clean the dust.

2) If output is too low, please inspect.

3) If copper granules output quantity is becoming less, please inspect vibrator, please brush off copper granules on the vibrator's screen.

4) Before getting vibrator started or turned off, please make sure vibrator's frequency returns to zero, otherwise, next time vibrator starting will have riddler damaged.



Correct Operation:

The choice of a telephone wire granulator and separator machine depends on material properties of types of copper wires and cables. Correct choice can improve not only working efficiency but also extend service life of machine. Cutting blades are made with Wire Cutting Technique; Blades are replaceable for each other. We have different requirements for blades for different types of copper wires.

1) Air-fine Wires, Multi-strands:

When dealing with Air-fine Wires and Multi-strands fixed blades and rotating blades must be very sharp so that copper wires can be cut and copper granules will be very clean and pure.

2) Single-strand and Single-core Wires:

When dealing with Single-strand and Single-core Wires, rotating blades shall be a little blunt and fixed blades must be sharp. In this case, spacing between rotating blades and fixed blades is just able to hold wires but does not touch cores. Wires are crushed but there will be tiny copper granules with plastics outside.

(Note: if blades are not adjusted in accordance with requirements, it may cause too many copper-clad granules and separation is not clean, etc.)



PlusBefore you process, you need to sort your copper cable and aluminum cable out, then you cut all the plugs on cable.

         Lastly, you can process all of your cables with our copper cable granulator machine with high efficiency.



Machine Precautions:

1: Machine should be placed stably, and there should be no shaking during production.

2: Machine should be placed horizontally: take the copper outlets as the standard.

3: When starting, crusher should be started first with no other requirements.

4: Separation screen of air separator should be cleaned regularly;

Method: Use high-pressure air gun nozzle to blow against front of screen to opposite side.



How to install Machine?

1. When installing crusher blades, screws should be coated with butter to prevent damage to screw holes.

2. Install machine knife sequence:

a: First install inner fixed knife, put cutter bar fork tightly against inner crusher chamber board, make fixed knife edge tightly on sidewall of cutter bar, and then tighten screws.

b: Rotate blades take installed fixed knife as standard. Gap between fixed blades and rotating blades the smaller the better, only it does not touch.

c: Finally, install external fixed knife. Take installed movable knife as standard-the gap between fixed knife and movable knife the smaller, the better.

3. Knife installation tool: electric screwdriver, with forward and reverse rotation.



BSGH EQUIPMENT Aftersale Service:

1: Overseas technical support available.

2: All day long 24-hour service, call me: 008613772508206.
