1:BS-400: 150~200kg/h.
2:small and compact size.
3:99.9% recycling rate.
Used Cable Crushing and Separation Machine Introduction
BS-400 Used Electric Cable Crushing and Separation Machine is our earliest model of cable granulator machine,this machine is used for copper and pvc separation, suitable for all kinds of wire or cable
In the latest years, this model are always improved and updated,now the efficiency is very good,but this is a small granulator machine only about 150~200kg/h capacity.
1.The whole systems are controlled by the Control Panle.
2.The bottem air flow is controlled by the Airlock.
3.Stable operation.
4.Minimum copper recovery rate can reach 99%.
5.No dust, no secondary pollution.
Mainly used for all kinds of scrap wires, copper wire, aluminium wire, such as automobile electric line, motorcycle electric line, storage battery electric line,waste household appliance disassembly electric line, electromechanical equipment,computer cable, telephone wire, cable TV line,communication cable and other scrap wires which are difficult to recycle, circuit board, copper-clad plate, etc.

Machine Advantages
√Easy to operate,reduce labor costs.
√Low energy consumption,high output,saving the use of cost.
√Separation effect is good, separation rate of up to 99%,no secondary separation.
√Environmental protection machinery.
Used Electric Cable Crushing and Separation Machine Technical Data
| Product name | Automatic cable granulator machine |
| Model | BS-400 |
| Processing range | 1-20mm |
| Capacity | 100 kg/hour |
| Power | 12 KW |
| Weight | 750 KG |
| Mea | 1500*1500*1800mm |

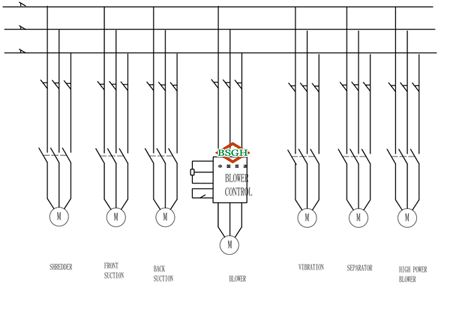

Used Electric Cable Crushing And Separation Machine Electric Diagram
![]() cable separator machine | ![]() BS-400 copper wire crusher machine |
Waste Electric Cable Crushing Machine Note
1:keep the Electric Cable Crushing Machine in level, No shaking during production.
2: level standard: copper comes out from Cable separation Machine outlet are even.
3: first start the Electric Cable separator machine's crusher motor, others no request.
4: air separator sieve need to clean regularly;Methods: use high pressure air gun nozzle to close the screen and blow from the front to the back.
BSGH EQUIPMENT Aftersale Service
1: Overseas technical support available.
2: All day long 24hours service,call me : 008613772508206.
