1. Designed specifically for small household motors below 1.5 KW.
2. Compact in size and mounted on casters, it saves space and ensures flexible movement.
3. Capable of cutting and pulling copper windings directly from motor stators under 120 mm.
4. High-efficiency hydraulic drive system offers a stable and powerful dismantling power.
5. Stator copper coil can be fully recycled in one pass.
6. Support customization for voltage, color, parts etc.

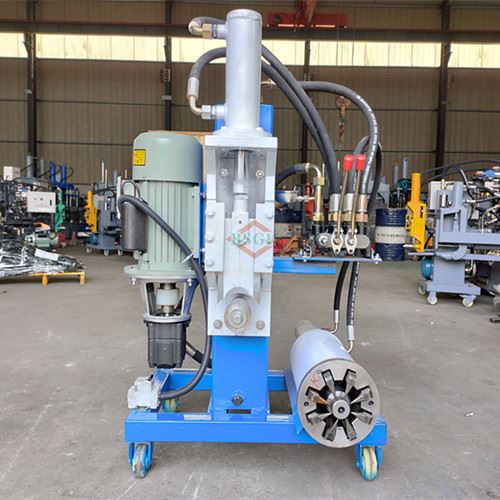

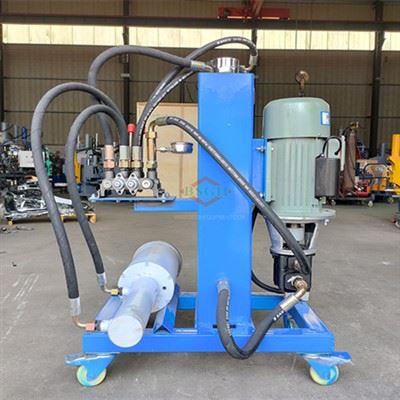

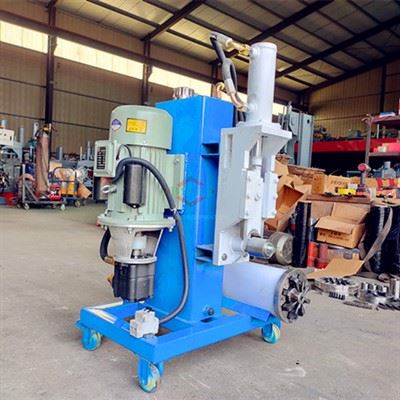

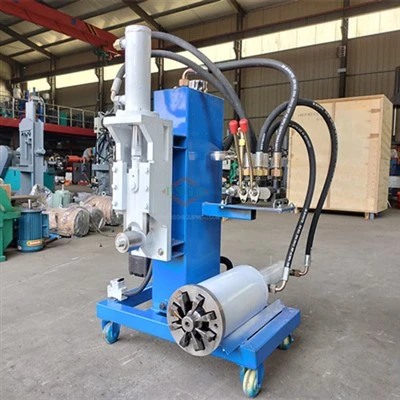

Mini BSC motor stator extracting machine is a compact hydraulic machine designed for cutting motor stators and pulling out copper windings. It can cut stators up to 200mm in outer diameter and handle a pulling range below 120mm, suitable for small motors from household appliances, fans, pumps, and small industrial equipment.
With its movable caster design, simple operation, and labor-saving copper extraction process, Mini BSC is ideal for small recycling centers, independent recyclers, motor dismantling workshops, and scrap yards looking to recover copper from small motor stators more efficiently.
Customer: Khaeiry Kheder from the USA
Machine Model: Mini BSC Motor Stator Extracting Machine
This video shows the pre-delivery test of Khaeiry Kheder's Mini BSC electric motor wrecker. Crescent blade first cuts one end of the motor stator windings, and then 8-jaw puller removes copper coils completely in one operation. The whole process is efficient, keeping final copper windings intact.
After watching the test video, Khaeiry Kheder said:"Mini BSC hydraulic motor extracting machine fully meets my expectations. Its price is also attractive, highly cost-effective. I am looking forward to seeing its performance in my yard."
Mini BSC stator extracting machine from BSGH supports customization for global voltage standards, ensuring seamless integration into your local industrial power grid and guaranteeing high-efficiency, continuous production.
| Model | Mini BSC Motor Stator Extracting Machine |
| Motor Power | 3KW |
| Voltage | 380V/220V |
| Weight | 150kg |
| Machine Size | 660*730*950mm |
| Packing Size | 830*830*900mm |
| Packing Weight | 230kg |
| Packing Volume | 0.62CBM |
As a specialized manufacturer in the scrap metal recycling field, we offer a full range of models to recycle motors, from compact to heavy-duty. If you are looking for a more targeted and efficient dismantling solution, Mini BST motor wrecker-another compact model in the same series as Mini BSC motor stator pulling and cutting machine-is also an ideal choice for you.
Mini BSC is small and space-saving, but its integrated structure provides stable performance, simple operation, and dependable copper recovery for small motor recycling.
Crescent Blade
Specially designed to cut the copper windings at one end of the motor stator, preparing for the next pulling step.

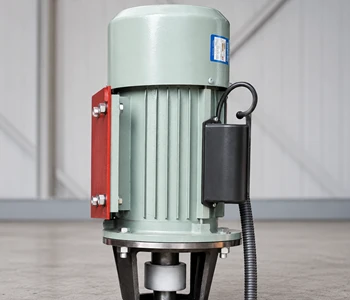

Pure Copper Motor
3kW pure copper motor provides stable power, reliable performance, and long service life.

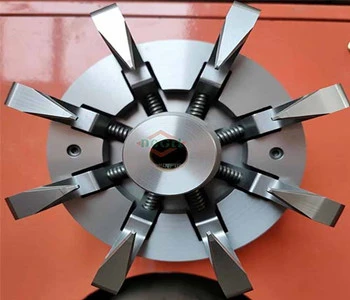

8-Claw Gripper
8-claw gripper firmly pulls copper coils out in one operation, helping achieve efficient and complete copper recovery.
With an easy-to-use hydraulic control lever design, a single operator can master it easily. Significantly reduces labor costs.
With an extremely compact design, Mini BSC motor extracting machine has a small footprint and saves space. Equipped with casters on the bottom, it can be easily moved by a single person, making it ideal for flexible on-site operations.
As a direct factory, our BSGH offers in-depth customization services to perfectly meet your diverse needs, such as voltage, color, and the number of claws.
Clean separation means minimal damage to copper, increasing recycling value.

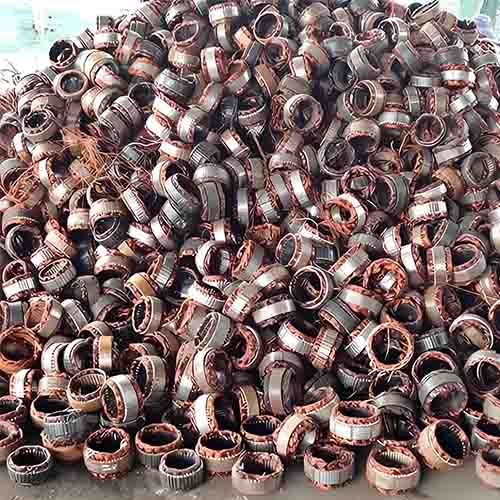

Engineered for dismantling electric motors below 1.5 KW, Mini BSC motor stator extracting machine efficiently handles washing machine motors, compressor motors, and small water pumps, achieving a copper recovery rate approaching 100%.
Mini BSC motor stator extracting machine is designed with a compact structure to help reduce shipping costs. After packing, the whole machine occupies only 0.62 CBM, making it easier and more economical to transport while ensuring safe delivery.
Many customers not only continue to buy machines from BSGH, but also recommend our Mini BSC motor stator extracting machine to local recyclers. Their feedback shows our machine's reliable performance, easy operation, and practical value in daily motor recycling work.
Danny from the USA
"When teamwork happens, things happen. With the help of the staff from BSGH, Kevin Walsh and I set up Mini BSC motor stator extracting machine successfully."
Lavish from the UK
"We were very satisfied with the Mini BSC motor stator extracting machine we previously purchased from BSGH. Therefore, when our factory recently needed to add a plasma cutting machine, I didn't hesitate to collaborate with you again."
William from the USA
"Quality of Mini BSC motor stator recycling machine is decent. After the sale, questions are answered. 100% if you are in the market for tolls by these companies. Please consider the purchase from BSGH; you won't be let down."
Q1: How do I adjust Mini BSC motor stator extracting machine's pressure?
A1: Turn the black knob clockwise to increase the pressure; turn it counterclockwise to decrease the pressure. Please note: Continuous operation at pressures exceeding 10 bar over extended periods is not recommended (except for professionally customized high-pressure systems).
Q2: Is it possible to use only cutting or pulling part of Mini BSC motor stator extracting machine?
A2: Of course, but please pay attention after each startup, you must briefly activate and reset the control switches for the unused functions before operating the function you intend to use. Otherwise, the unused functions may deteriorate over time, which could affect the overall operation of Mini BSC motor stator extracting machine.
Q3: What should I pay attention during the routine maintenance of Mini BSC motor stator extracting machine?
A3: When performing routine lubrication, pay special attention to lubricating the cutting blade's path and the claw's path. If lubrication is neglected for a long time, it can cause irreparable damage to the blade in severe cases and may also cause the claws to operate poorly.
