heavy duty scrap cable granulator Machine Advantages:
1.The blades:special square blades,large quantities blades and one blades can be used four times.(Saving the sharpening blades time,can improve the working efficiency)
2.The machine size and capacity:Compact structure,large capacity up to 400-600kg/h.
3.This copper wire granulator machine ECO100 has stable and reliable performance.
4.Low power consumption:49.74kw
5.Higher separation rate up to 99.99%
Heavy Duty Scrap Cable Granulator Machine Introduction
ECO100 heavy-duty cable granulator machine also called: Disc square knife grinder. It is used for processing automobile wires, communication cables and car wires, mixed wires other types of miscellaneous wires and cables.
1. Special use the square blades, longer life span than the ordinary blade. (Save the regrind blades time)
2. Easy to operate,1-2 workers can work well.
3. The final product copper granules is dryer and brighter.
Heavy Duty Scrap Cable Granulator Technical Data
| Model | ECO100 heavy duty cable granulator machine |
| Process Diameter | Below 25mm |
| Voltage | 380V 50Hz or customized |
| power | 49.74KW |
| Size | 6*3*3M |
| Weight | 5000KG |
| Capacity | 400-600 T/H |
Scrap Cable Granulator Machine ECO100 Features
1)Compared with other types of copper wire granulator machines, the same quantity of wires, the output is higher; the same working time, can save more power.
2)On copper outlet equipped with a magnetic separation device, it can directly remove the iron and steel from the copper granules.
The ECO100 Dry Type Cable Granulator Machine Mainly Consists of
1.)Main crusher: Shredder the wasted wires
2.) Conveyor belt: Transport the copper and plastic grinder to the air separation device
3.)Air separator device: Separate the copper and plastic
4.)Dust collection system: Suck the dust from the whole process
5.)Electric box: Stable 3-phase power provide
6.)Magnetic separator: Remove the iron or steel from the copper (aluminum)
7.)Plastic outlet/Copper outlet vibrating table: Separate the copper and plastic
Scrap Cable Granulator ECO100 Details Picture

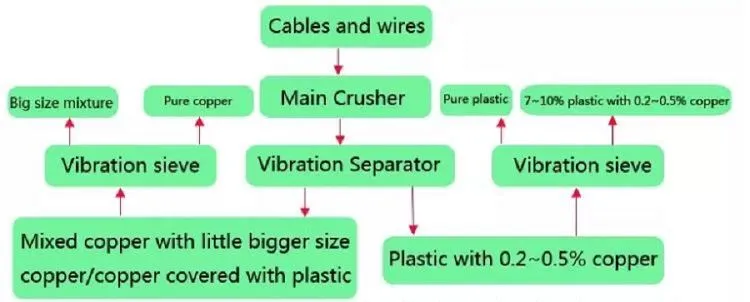

Used Cable Granulator Machine Work Principles
Step1:Feeding scrap cable into feeding holes and make them crush to small pieces by a crusher.
Step2:Crushed cables drop into the vibration separator.
Step3:Mixed cables are separated by vibration separator to pure PVC and copper granules through air blowing and separator vibrating.

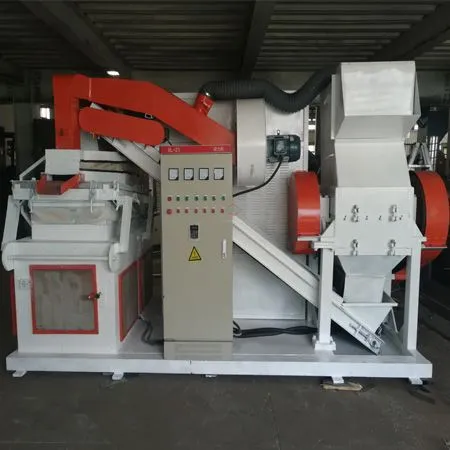

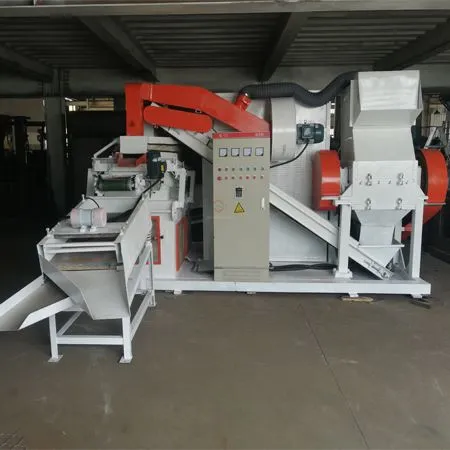

Heavy Duty Scrap Cable Granulator ECO100 Display
ECO100 cable granulator machine |
cable wire granulating machine |
Separation Effect of Cable Granulator Machine
copper granular |
copper rice |
plastic granular |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1.Packaging in plastic film
2.Shipping in 1*20GP container
Optional Parts of Heavy Duty Scrap Cable Granulator Machine
if your scrap cable have metal, you can choose this double layer magnetic separator. |
if you want to increase the copper recovery rate,this electrostatic separator will help you a lot. |
BSGH EQUIPMENT Aftersale Service
1: Overseas technical support available.
2: All day long 24hours service,call me : 008613772508206.
