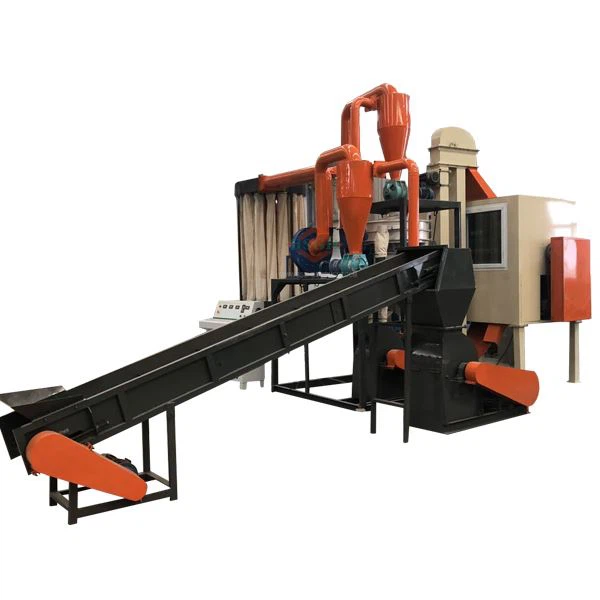

Printed Circuit Board Recycling Machine:
1:We have different specifications PCB Recycling machines for you to choose.
2:Used for separating metals and non-metals, recycling metals and resin powder from raw materials, such as waste circuit boards, CCL, circuit boards, bits and pieces.
3:Entire assembly line uses PLC intelligent programming automatic control and man-machine interface touch screen, so as to realize entire production line's even feeding and coordinated work.
4:Compact structure, reasonable layout, stable performance, and equipped with noise reduction treatment.
Machine Introduction:
a)Printed circuit board recycling machine(scrap printed circuit board also called PCB in short)is mainly for recycling all kinds pcb, copper clad plate and leftover material, which mainly for separating metal and nonmetal material with good comprehensive performance;
b)For computer board recovery, television board recycling and other printed circuit board recycling, it has a unique effect, and it is also compatible with recycling various circuit boards containing capacitors.
Best optional process: Wasted PCB is crushed by pre-shredder and after into a fine crusher, ferromagnetic substances will be separated by magnetic separator, copper or other metals and nonmetal will be separated by high-frequency pneumatic separator, at last via electrostatic separator to make this machine reach a high separation rate.
Machine Technical Data:
| Model No | Capacity | Machine Size | Weight | Power | Recycling Rate |
| BS-P150 | 100~150KG/H | L5000*W4000*H3800mm | 3000KG | 56KW | 99% |
| BS-P300 | 200~300KG/H | L8000*W4000*H3800mm | 4500KG | 56KW | 99% |
| BS-P500 | 300~500KG/H | L11000*W5000*H3800mm | 6000KG | 114.6KW | 99% |
| BS-P700 | 500~700KG/H | L11000*W6000*H3800mm | 8000KG | 135KW | 99% |
| BS-P900 | 700~900KG/H | L12000*W8000*H3800mm | 9.5T | 152KW | 99% |
| BS-P1100 | 900~1100KG/H | L12000*W9000*H3800mm | 10T | 180KW | 99% |
Machine Configuration:
1: Crushing part uses shredding, smashing and crushing processes, and circulating water cooling is used inside and outside crushing chamber.
2:Use negative pressure feeding system and pulse dust removal system to purify working environment.
3:Sorting part adopts proportion sorting combined with static careful selectionto make metal separating rate reach up to more than 99%.
Machine Structure Function:
1: PCB separator machine: Dismantle electronic components& PCB board;
2: PCB Crusher: Crush raw material into 2-3 cm;
3: Circuit board mill: Pulverize to about 20 mesh;
4: Analytical Engine: Collect dust fibers, resins and copper into sieve;
5: Set feeders: Collect fibers after discharge;
6: Sieve machine: Not separated material after crushing process return host smash again, and smash targets enter high-voltage electrostatic to continue separation;
7: High-voltage electrostatic separation: Working principle is input power is adjusted to 100,000 volts of high pressure through transformers, and high-pressure field has effect of conductive metal adsorption to achieve separation of metallic and non-metallic;
8: Gravity separation: Separate metal and nonmetal with the most advanced technology currently, and metal separation rate can reach above 99.99%;
9: Air purifier: Collect dust, microfiber generated during crushing process;
Raw Material:
 Copper clad laminate |  CCL |
Printed Circuit Board Recycling Machine End Product:
 Copper substrate |  Metal and nonmetal from PCB |
BSGH EQUIPMENT Aftersale Service:
1: Overseas technical support available.
2: All day long 24-hour service, call me: 008613772508206.
