1:For motor stator separator machine, BSGH is number one in China and overseas, because of its one-stop recycling solution for all kinds of electric motors, most complete solution for any kind of motor, here you can find any scrap motor machine you want.
2:BSGH Equipment motor stator cutting and pulling machine is integrated the stator cutting and pulling function as in one machine.
3:Have 1 cutting part and 3 pulling parts, 3pulling parts is suitable for different kinds of motor stator pulling.
4: Electric Motor Recycling machine BSM-10 is a multifunction machine, you can process different motor within one machine.
Machine Introduction:
This multifunction scrap motor stator recycling machine BSM-10 is integrated the stator cutting and pulling function as in one machine, and you can process different motors within one device, very useful and convenient. BSM-10 electric motor recyclers have 1 cutting part and 3 pulling parts, suitable for cutting copper winding one end and taking copper winding from various scrap motor stators.
BSM-10 motor copper cutting machine is mainly used for industrial motors(waste motor stator diameter range 50 to 500MM), coming from BSGH manufacturer in China.
Technical Data:
| Model | BSM-10 multifunction scrap motor stator recycling machine |
| POWER | 5.5KW |
| G.W./N.W.: | 750/690KGS |
| SIZE | L2400*W1100*H1300MM |
| RANGE | Stator Diameter 50-500MM |
Machine Detail:
 |
Machine Basic Operation Part:
●Wiring: Electric motor wrecker machine default three-phase 3 firewire connection method;
●Hydraulic oil adding: Machine needs to refuel approximately 40-50 kg(or 45~50 liter about four-fifths of the fuel tank ).
●Cutter positioning sleeves: Select appropriate cutter shaft sleeve (smaller than inner or closest to inner diameter of stator to be disassembled).
●Cutting head adjust: Move up and down to adapt to a suitable position until cutter touches sleeve.
Machine Daily Use And Precautions:
1. Before work, check electrical box and be careful not to get water or moisture.
2. Check that there are no flammable materials around to avoid dangerous accidents.
3. Check the power outlets and sheaths, and replace them if damaged. Inspect oil pipelines for leaks to ensure safe use.
4. There are two running tracks on both sides of cutter, which need to be refueled daily. It is best to add lubricant more than twice a day.
5. When claws are retracted, there are several claws running tracks inside tube, which needs daily oil lubrication. It is best to add lubricant more than twice a day;
6. For hydraulic clamp, there's a different handle to control backward or frontwards, up or down.
7: For motor scrap dealers, they also can buy machine to recycling copper for more profit.

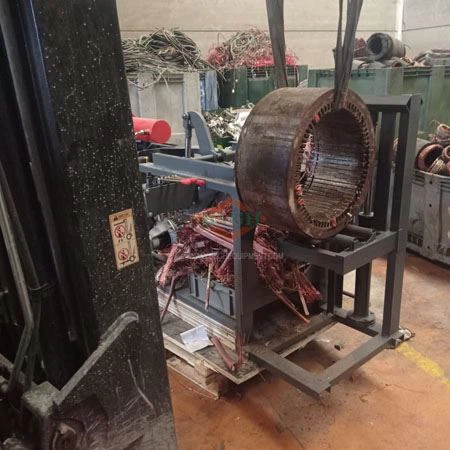

Machine Display:
 |  |

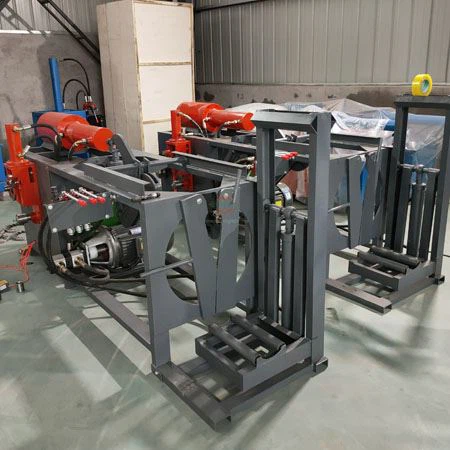

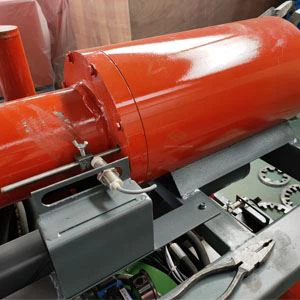

Machine Detail Picture Display:
 |  |  |

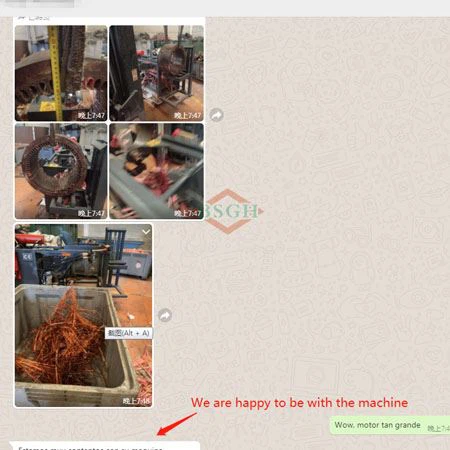

Good Feedback And Affirmation From Our Spain Client:
 |  |
Spain Client's Machine Details As Follows:
 |  |  |
FAQ:
Q: How long is this multifunction scrap motor stator recycling machine's life?
A: BSM-10 only needs to replace the blade and there will be no life problems in this machine's other parts.
Q: Does your machine have quality assurance?
A: 12 months. During 1 year warranty period, this model's main parts that humans do not damage can be repaired and replaced.
Q: What are your payment terms for new customers?
A: You can pay 30% deposit first. After your machine is finished, you can pay 70% of final payment, and you can come to our factory to test machine. If you are not satisfied with your machine, we promise to return the 30% deposit.
Find a recycling solution from BSGH EQUIPMENT wholesale right now:
1: Overseas technical support available.
2: All day long 24-hour service, call me: 008613772508206.
