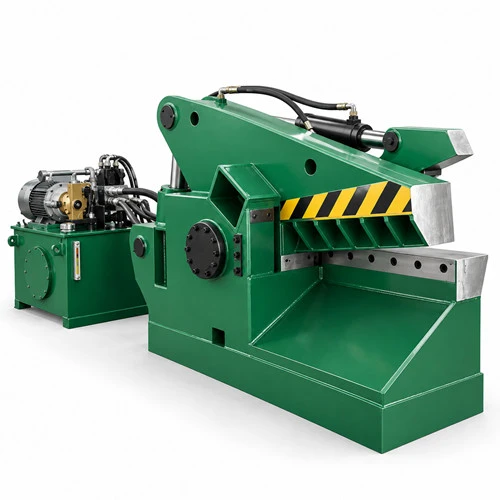

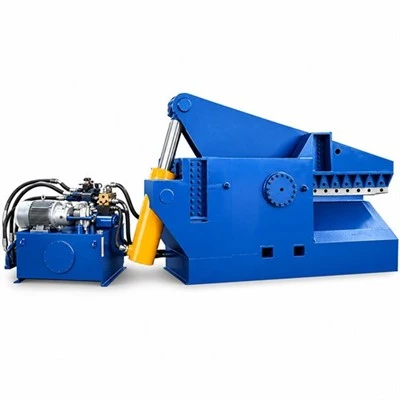

AS-2500 Heavy-Duty Hydraulic Metal Shear Machine For Sale

AS-2500 hydraulic metal shear is designed to cut long, bulky scrap metal into smaller, manageable pieces. With a maximum shearing force of 2,500 kN, a 1,000 mm blade, and a maximum blade opening of 480 mm, it handles steel bars, angle iron, channel steel, and other structural metal scrap.

Ideal for scrapyards, metal recycling facilities, vehicle dismantling yards, and demolition recycling operations.

If you require other shearing force, please check our metal shear for more.

Watch BSGH AS-2500 metal shear in action during a no-load test, demonstrating its automatic and single-cycle operation modes.

How does it work?

• Hydraulic hold-down first presses down to secure the scrap metal, then the cutting blade moves down to shear it. After cutting, the blade retracts and the hold-down releases, ready for the next cycle.
• In automatic mode, AS-2500 repeats this cutting sequence continuously. In single-cycle mode, it completes one full press-cut-return cycle at a time.

This no-load test demonstrates the smooth, coordinated movement of both mechanisms.

Featuring a split-type design and 2,500 kN of maximum shearing force, AS-2500 hydraulic metal shear is built for heavy-duty scrap metal cutting in scrapyards and recycling facilities.

AS-2500 scrap metal shearing machine uses two 15 kW motors and a dual-pump hydraulic system to support stable, repetitive cutting.

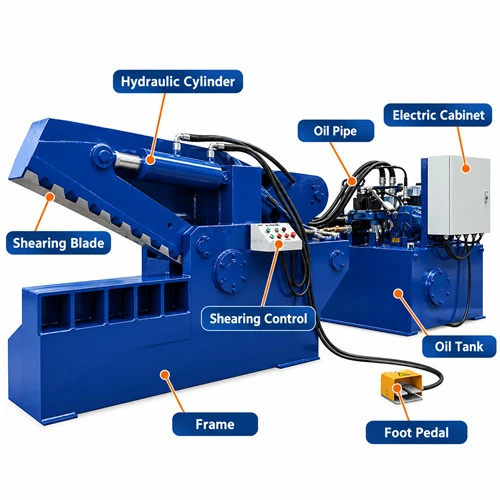

The split-design structure provides access to the main mechanical, hydraulic and electrical components.

1. Shearing Part: Before cutting, pressing mechanism holds the scrap metal firmly in place. The moving upper blade then closes against fixed lower blade, cutting the metal into shorter, manageable pieces.
2. Hydraulic System: Hydraulic pump, oil tank, cylinders, and hydraulic pipes work together to provide the force needed for pressing and shearing, ensuring smooth, controlled movement during operation.
3. Electrical Control System: Electrical control cabinet manages as-2500 metal shearing machine's operation, while the control panel allows operators to start and stop the machine, control the cutting and blade return movements, and activate the emergency stop when needed.
4. Heavy-Duty Steel Frame: The welded steel frame provides strong, stable support for the entire machine, helping it withstand the high forces generated during heavy-duty scrap metal cutting.

Regular maintenance helps keep your AS-2500 hydraulic metal shear running reliably and reduces unexpected downtime. Follow the supplied maintenance manual and have all inspections and servicing carried out by qualified personnel.

AS-2500 hydraulic metal shear handles a wide range of ferrous scrap, including channel steel up to 280 × 124 × 11.5 mm, angle steel up to 160 × 160 × 12 mm, round steel up to Ø80 mm in diameter, and square steel up to 75 × 75 mm. It can also cut steel plates up to 20 mm thick × 700 mm wide or 40 mm thick × 300 mm wide.

Actual cutting capacity depends on the steel grade, material strength, and cross-sectional shape.

Send us photos of your scrap with its dimensions so we can check whether AS-2500 suits your material.

AS-2500 hydraulic metal shear is securely packed in a sturdy wooden crate to protect it from moisture and damage during transportation.

We also provide packing photos and shipping information, so you can track your shipment and stay updated until the machine arrives at your destination port.

Customers share their experience with everyday cutting performance, operation and maintenance after using AS-2500 hydraulic shearing for metals.
