Leading Manufacture BSGH Compressor Recycling Machine Advantages:
1:Process capacity is 350pcs/h.
2:Suitable for compressor motor such as fans, washing machines, air-conditioning compressors, air-conditioning fans, small water pumps.
3:If your compressors are longer than normal compressor stator,such as submersible pump compressor, we can also customize compressor pulling cutting machine for you.
4:Function:cutting and pulling compressor stators then can recycling copper easily.
5:Normal compressor cutting machine processing range:
The stator inner diameter is more than 4 cm;
The outer diameter of the wire package is less than 12.5 cm;
The thickness of silicon steel sheet is below 12.5 cm;
Motor Compressor Recycling Machine Introduction:
Compressor recycling machinery is mainly for cutting inner compressor stator copper winding at one end, then using the jaws to pull out the copper winding in one machine to finish the processing.
Scrap Compressor mainly comes from scrap refrigerator, fridge, ice machine, air conditioner, water pump, consists of the motor case and inner compressor motor stator：
for the motor case, normally we recommend customer buy a special compressor motor case cutting machine; after taking out the compressor stator, then use our compressor cutting machine to process.
BSGH has the most advanced technology and most complete products for scrap motor recycling machines, especially the compressor recycling machine, special design, and reasonable price according to the scrap compressor characters, BSGH compressor recycling can easily to recycling scrap compressor reach the best effect, also support customized according to the special motor.
BSGH compressor motor recycling machine is integrated the stator cutting and pulling function in one machine can process different motor compressors within one machine, such as fans, washing machines, air-conditioning compressors, air-conditioning fans, small water pumps (motors power below to 1.5 KW are included).
★If your compressors are very thin and long such as submersible pump compressors, we can also customize the compressor cutting recycling machine for you.
Scrap Compressor Cutting Machine Functions:
The scrap compressor stator recycling machine has two functions:
One hydraulic cutting function is used to cut the copper wire in the motor stator or compressor at one end, and the other is used to pull the copper wire wrap from the other end of the chopped stator/compressor.
And the compressor cutting machine has 1 cutting part and 1 pulling part, 1 pulling part is suitable for different kinds of motor pulling.
Scrap Motor Compressor Cutting and Pulling Machine Technical Data:
| Power | 3KW |
| Weight: | 265KG |
| Size | L84*W110*H85CM |
| Capacity | 350pcs/h |

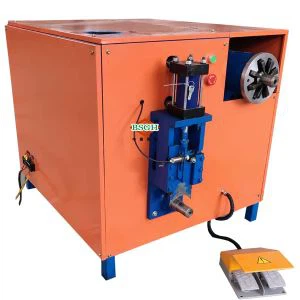

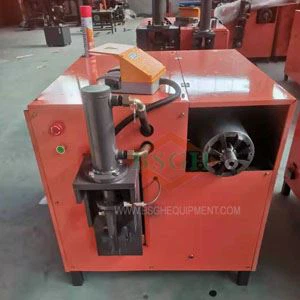

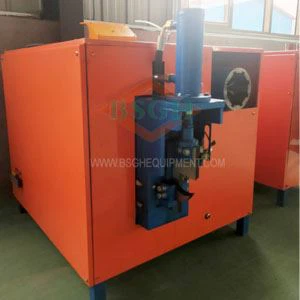

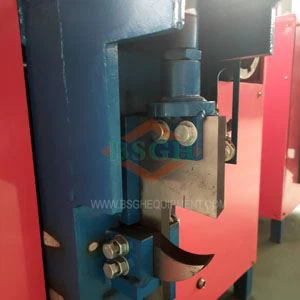

Compressor Motor Cutting Machine Different Angles Pictures And Cutting Part Details Picture:
 |  |  |
Note: Whether it is a compressor or a motor, an alternator or a DC generator, they are all a type of motor. As long as the following three conditions are met, our Scrap Electric Compressor Stator Recycling Machine can process:
1: The stator inner diameter is more than 4 cm;
2: The outer diameter of the wire package is less than 12.5 cm;
3: The thickness of the silicon steel sheet is below 12.5 cm.
Compressor Cutter Machine Advantages:
1.) Simple operation and use;
2.) CE certification.;
3.) Multifunctional and has high work efficiency.;
4.) Has perfect separate performance.
BSGH EQUIPMENT Aftersale Service:
1: Overseas technical support available.
2: All day long 24hours service, call me: 008613772508206.
