1. Twin 4 kw pure copper motors with gear reducers provide stable, high torque for shredding your materials. Low-speed drive also helps reduce noise and energy consumption during operation.
2. Quenched blades and reinforced frame withstand continuous tearing work, extending shredder's service life, reduce maintenance, and minimize downtime.
3. As a compact and cheap dual shaft shredder, MS-D300 is ideal for start-ups, small recycling workshops, individual recyclers, and entry-level recycling businesses.
4. When an overload or blockage happening, shafts reverse automatically to clear your material, protecting your shredder from unnecessary wear and damage.
5. Voltage, blade material, and machine configuration can be customized according to your local power supply and raw materials.

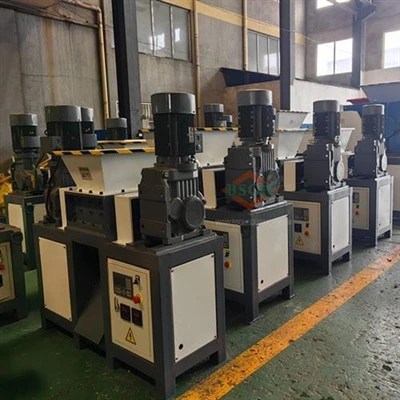

MS-D300 mini metal shredder is a compact and cost-effective dual-shaft shredder designed for reducing your bulky waste into smaller, more manageable pieces. Powered by two 4 kw geared motors, this mini shredder provides low-speed, high-torque shredding for waste cables, light metal scrap, plastics, cardboard, and other recyclable materials.
As one of the best-selling small dual-shaft shredder models in BSGH, MS-D300 offers a practical balance of durability, versatility, and affordable investment for recyclers looking to start their shredding operations with limited budget.
Andreas already owned a small copper granulator, but plug wires and cables with hard connectors sometimes damaged the main crusher blades. He needed a compact pre-shredder to reduce cables size and protect his main machine, while keeping the investment within his budget. Based on these requirements, we recommended MS-D300 mini twin-shaft shredder.
Before shipment, we tested the machine with scrap cables and sent the working video to Andreas. Although compact, MS-D300 quickly shreds plug wires into small, uniform pieces that discharge smoothly within seconds.
After watching the test, Andreas was pleased with the machine's smooth operation and efficient shredding performance.
MS-D300 small dual-shaft metal shredder is powered by two 4 kw geared motors. Its low-speed, high-torque drive provides strong and stable shredding force, enabling to process tough scrap materials efficiently while reducing jamming and overload.
| Model | MS-D300 Mini Metal Shredder |
| Machine Power | 4 KW*2 |
| Machine Size | 1540*600*1450mm |
| Machine Blades | 26 pieces |
| Feeding Port Size | 600*500*300mm |
| Outlet Width | 480mm |
| Discharge Port Height From Ground | 200mm |
| Machine Weight | 800kg |
If you want heavy-duty metal shredder, then please check other dual-shaft shredding machines. Also you can feel free to contact us, and we will help you find the most suitable equipment.
From the drive system to the reinforced frame, every component of the MS-D300 mini dual-shaft shredder is selected to support stable, continuous scrap processing.
Dual Copper-Wound Motors: Two 4 kW copper-wound motors provide reliable power and strong torque for continuous shredding.
Counter-Rotating Main Shafts: Two shafts rotate in opposite directions, pulling materials into the shredding chamber and creating a strong shearing action for efficient size reduction.
26 Shredding Blades: A total of 26 blades are arranged across the dual shafts. Blade material can be customized according to the hardness and type of material being processed.
Wide Feed Hopper: The large hopper opening makes material loading safer and smoother while reducing the risk of jams.Smooth
Discharge Outlet: The discharge port allows shredded material to leave the machine continuously, preventing buildup inside chamber.
Reinforced Steel Frame: The frame is welded from 45# carbon steel, providing a rigid and stable base for the shredding chamber during operation.
PLC Control System: The integrated PLC system controls start, stop, reverse, and overload protection, making the machine simple and safe to operate.
Emergency Stop Button: The emergency stop allows you to shut down the machine immediately if an abnormal condition occurs.
Lower Operating Costs
Heat-treated blades and wear-resistant components provide a longer service life, helping reduce maintenance frequency, spare parts costs, and unplanned downtime.
Certified Quality You Can Trust
MS-D300 mini dual-shaft shredder is CE certified and manufactured to recognized European safety and quality standards, giving buyers greater confidence in machine reliability and compliance.
Safer Daily Operation
An emergency stop, overload protection, and automatic reverse system help prevent material jams, reduce equipment damage, and support safer operation.
Process More Materials with One Machine
MS-D300 metal shredding machine can crush cables, light metals, plastics, cardboard, wood, and other scrap materials, giving recycling businesses greater flexibility without investing in multiple machines.
1. Before you start
• Make sure the oil in the gearbox has reached the level indicated by the sight glass.
• Please confirm that there is no debris or objects in the shredding chamber.
2. Getting started takes just two steps:
• Release the emergency stop button by turning it clockwise.
• Press F1 on the control panel – MS-D300 mini metal shredding machine begins running.
Note: To stop the equipment at any time, you can simply press the emergency stop button.
3. Feeding for best results
• A conveyor belt is the best option for steady, continuous feeding.
• Keep the feeding volume small – about 0.02–0.03 m³ per load. Avoid filling the feed hopper all at once.
• If feeding by hand, add small batches and give the machine time to process each load before adding more.
4. If Jam Occurs
• Stop feeding immediately and use the reverse function to clear the blockage.
• Once MS-D300 dual-shaft mini metal shredder has restarted normally, switch back to forward mode and continue crushing.
MS-D300 is a compact dual-shaft shredder designed for processing a wide range of recyclable materials, including scrap cables, light metal scrap, plastics, cardboard, and similar industrial waste.
Not sure whether it can process your material? Send us the material type and size, and our team will recommend the right shredding solution for your recycling needs.
MS-D300 mini metal shredder is securely packed in a reinforced export-grade wooden crate to protect the machine from moisture, vibration, and impact during international transportation. Once shipped, we provide the bill of lading and tracking information, allowing you to follow your dual-shaft shredder throughout the delivery process.
BSGH has supplied a large number of MS-D300 mini dual-shaft metal shredders to scrap yards, recycling workshops, and small processing facilities worldwide. Its compact design and reliable shredding performance make it a practical solution for small-scale waste and scrap material processing.
Luca in the United Kingdom
"We mainly process scrap cables and light metal. MS-D300 shredder reduces the material size quickly, which makes storage and the next processing step much easier. It's been a great fit for our small recycling yard."
Robert in Australia
"I was looking for a compact shredder with low operating costs. Your MS-D300 mini shredding machine has been easy to operate, and maintenance has been straightforward so far."
Bautista in Argentina
"MS-D300 dual-shaft equipment is very easy to operate, and the reverse function is particularly useful if the hopper gets overloaded. Once the blockage is cleared, we can get back to work in just a few moments."
Q1: How do I clean MS-D300 mini metal shredder's blades box after each shift?
A1: Simply let MS-D300 run empty for a few minutes at the end of each shift, alternating the rotation direction. This helps clear any residue stuck in the cutting chamber and discharge it, keeping machine clean for next cycle.
Q2: How often should I change the gearbox oil of MS-D300 mini metal shredder?
A2: Check the gearbox oil level monthly through the sight glass and refill if needed. Under normal conditions, you just need to replace the 220# gear oil once a year to keep the gearbox running smoothly.
Q3: Is it normal that tearing chamber temperature rises when MS-D300 mini metal shredder running?
A3: The reason is dull blades, so you need to replace blades asap.
Q4: My MS-D300 mini metal shredder seems to be running slower than before – what's going on?
A4: Usually down to low voltage, especially if you're running other equipment on the same line. Check your power supply and try running MS-D300 mini metal shredding machine on its own circuit. If that doesn't fix it, let us know.
