Cheap Copper Cable Granulator Machine BS-1000 Features:
1. Processing Capacity can reach 800-1100kg per hour;
2. This cheap copper granulator can process scrap wires with diameter range 0.5-20mm;
3. Equipped with electrostatic separator machine model 1800 to improve copper recovery rate;
4. Equipped with 2 sets of magnetic separator machines to remove iron out from copper granules;
5. Purity of separated copper rice reaches 99.9%;
6. Saving labor, simple operation and serving for a long life.
Cheap Copper Cable Granulator Machine Introduction:
Our cheap copper granulator can automatically separate copper and insulation layer from waste cable wires to achieve pure copper. BS-1000 copper cable granulator machine can process circuit wires, cable wires, miscellaneous automobile wires, communication wires, USB cable wires, earphone wires and other various waste cables with a diameter between 0.5-20mm, its processing capacity is up to 1100kg per hour, belonging to large copper granulator machine.
BS-1000 cheap copper granulator machine with model 1800 electrostatic separator machine can greatly increase copper recovery rate and final product processed by BS-1000 is clean copper and pure plastic.
Cheap Copper Granulator Technical Data:
| Machine Name | Cheap copper cable granulator machine |
| Machine Model | BS-1000 |
| Machine Capacity | 800-1100KG/H |
| Processing cable wires diameter range | 0.5- 20mm |
| Machine Size | 10*6.5*2.8M |
| Machine Weight | 3.5T |
| Machine Power | 105.87KW |
For different types of waste cables, the processing capacity of BS-1000 is as follows:
For 1.5 square cables, capacity is about 800-1100 kg per hour;
For waste cables with a copper content of less than 35% (such as tricycle/motorcycle waste cables), capacity is about 300-500 kg per hour;
For waste cables with a copper content of about 35%-55% (such as network cables), capacity is about 450-600 kg per hour;
For waste cables with a copper content of about 55%-70% (such as communication cables /car cables), capacity is about 500-700kg per hour.

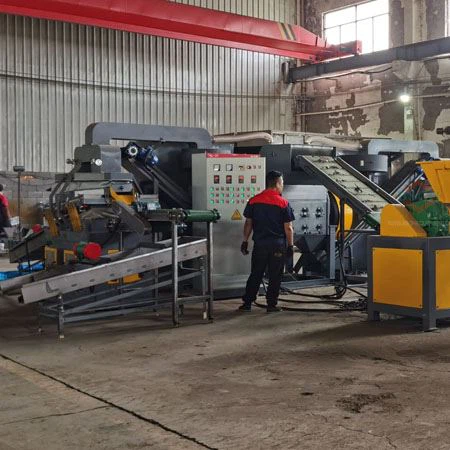

BS-1000 Copper Cable Granulator Machine Pictures:
 |
|
BS-1000 Cheap Copper Granulator Structure:
BS-1000 copper granulating machine includes 4 pcs of conveyor belts, 1 set of model 600 double-shaft shredder machine, 1 set of model 800 main crusher, 2 sets of air separation devices, 2 sets of magnetic separator machines, 2 sets of small vibrating tables, 1 set of models 1800 electrostatic separator machine and 1 set of dust collection system.
Cheap Copper Cable Granulaor Machine Usage and Maintenance:
After choosing a suitable machine, the serving time of BS-1000 also depends on an appropriate and timely maintenance.
The cheap copper granulator BS-1000 adopts bearings with high temperature lithium complex grease, impact resistance, serving for a long-term use if users regularly inject grease. Once the blade is passivated, it can be polished, meanwhile, the gap between moving and fixed blade can be adjusted to 0.15-0.25mm. Bearing needs to be replaced after working for 300 hours and its chain needs extra grease after 15,000 operating hours.
BSGH EQUIPMENT Aftersale Service:
1. Overseas technical support available;
2. All day long 24 hours services, call me:008613772508206.
