Motor Stator Cutting and Pulling Machine

Motor Stator Cutting And Pulling Machine MR-T Introduction:

Motor stator wrecker machine MR-T is applicable for all kinds of scrap electric motor, which have 2 parts, one is cutting parts, another is pulling parts.

You can use sharp blades cutting scrap motor in half, after use pulling parts to pull scrap rewinding copper wire out, then you can get the pure copper winding wire.

Waste Electric Motor Pulling Machine MR-T Technical Data:

Motor Copper Pulling Machine MR-T Working Steps:

- Wrecking of aluminum or cast iron motor housing and removal of anchor/rotor;

- Splitting of stator or transformer block into 2 equal parts;

- Separating Iron and copper of stator by means of a sophisticated hydraulic operation.

Scrap Motor Dismantling Machine Features:

★Use a heavy cylinder and larger torque can bear high loads;

★Use an international brand hydraulic solenoid valve for durable and long life;

★Blades and motors use the best quality raw materials, can help you save more money, and let you few maintenances.

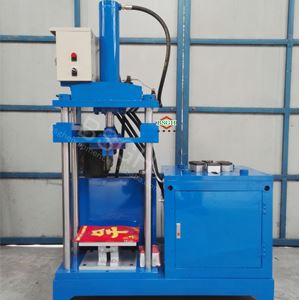

Structure Of Scrap Motor Stator Copper Cutting Recycling Machine MR-T:

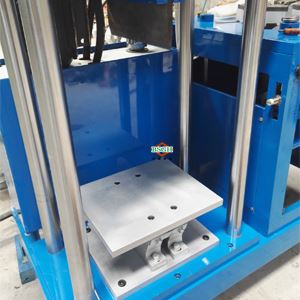

Cutting area shell and stator

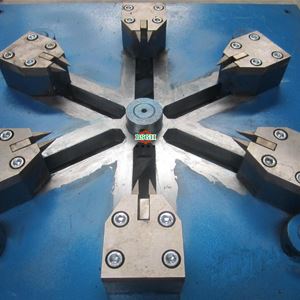

Separating area

Motor rotor recycling machine

MR-T waste motor cutter machine is an extremely robust machine according to the latest machinery guidelines, coming fully CE-Certified.

- Ergonomic working height.

- Maximum consideration is given to operator safety.

- Robust construction.

- Easy to relocate.

- Plugin and go operation.

- Readily available spare parts.

More Questions Answered:

1. Can deal with all kinds of the waste motor?

No, can't. Electric Motor recyclers machine itself can't deal stator like follow :

Not all stators can be processed, if stator includes glue tightly, bamboo tightly or stator sparse or fake motor will cause copper can't be pulled out completely. This needs to process according to the actual situation.

If the common motor, our motor cutting recycling machine can deal perfectly.

2. What's the process range?

80-200mm diameter.

3. What's different between sharpening blades the flat blades?

Sharpen blades' weight is 7 kgs and flat blades are 3kgs.

Sharpen blade aims to cut stator and flat bade aims to cut shell.

4. Can I customized a bigger range machine?

We can not do this now.

5. Can I sharpen the blades?

Yes, you can.

6. Let me think about it, I need to test it first?

You can rest to assure machine quality, our machine will be thorough strictly inspected once ready before shipping.

7. It will be much noisy?

Not much, noise must be lower than industrial noise, and this recycling machine is a hydraulic system, noise is a normal hydraulic system voice.

8. What are your blades made of?

Blades material: CR12MOV, Manganese steel; Quenching tech.

9. How to change blades?

Very easy and convenient to adjust, open the screw can change blades directly.

10. How about warranty and after service?

Warranty of machine based on 1 year except for wear parts.

Provide lifetime after-sale support to our customers including operation guidance, parts replacement, maintenance support.

Of course, we will serve you online 24hours.

11. Sharp blade and flat blade change by hands?

Yes.

12. Can this machine use a single-phase?

No, only can be driven with 3phase, but if you insist on a single-phase, it's also ok, just after you get the machine, you need to transfer to 3phase.

13. What's the usage of electricity/hour?

80% of total power.

14. What's machine life?

The machine can use many years, till now, no clients ask back for our machine can not use, life span very long, just spare parts need to change accordingly.

15. How much hydraulic oils should add?

Three quarters /two-third.

BSGH EQUIPMENT Aftersale Service:

1: Overseas technical support available.

2: All day long 24hours service, call me: 008613772508206.
