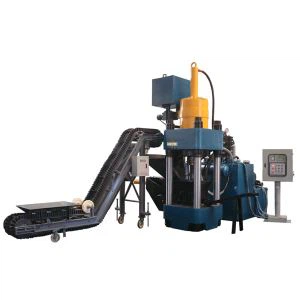

Scrap Metal Briquette Machine BJ3600:
1:Processing capacity is 5 block/min, production is 1.2-1.5T/H.
2:High pressure reached in compression chamber allows creating high density briquettes.
3:Besides drastically reducing volume of machining chips, remove cutting fluids and create briquettes.
4:In most cases,briquettes can be placed directly in smelting furnaces.
5:Bring substantial economic benefits for companies that generate scraps, companies that recycle metal scraps, and for foundries that process scraps.
6:There are a large number of environmental benefits resulting from briquetting process.
Machine Introduction:
Scrap metal briquette machine BJ3600 uses cold pressing technic to process metal scraps or metal powdery grainy, such as scrap aluminum, scrap copper, scrap cast iron, scrap steel and etc. It is used to recover metal scrap of cable granulator, compress metal scrap into briquette or block, and then place them in furnace for melting.
Study shows energy cost to get metal from metal recycling is only 50-90% by using raw minerals. Also, this will help to reduce exhaust on metal manufacturing process.
Machine Technical Data:
| Model | BJ3600 |
| Inner Diameter Of Main Cylinder(mm) | Φ400 |
| Size Of Briquette(mm) | Φ90-120*(80~100) |
|
Density Of Briquette(T/M3) Copper |
≥6.5T/m3 |
| Weight Of Briquette | 4-5(KG) |
| Capacity(block/min) | 5 |
| Production(T/H) | 1.2-1.5 |
| Power(KW) | 30 |
Making Metal Briquette Benefit:
◆Briquetting increases metal chips value and turns them into ongoing income stream.
◆Briquetted material helps alleviate any potential cross-contamination with other materials.
◆Briquettes are almost free of CNC coolant compared with loose metal chips and don't leak coolant during transportation around factory or en route to recycler.
◆Briquetters eliminates need for drying racks or centrifugal dryers, removing a costly handling process.
◆Transportation, handling and storage costs are lowered as a result of the volume reduction achieved through briquette.
◆Machine briquette counters allow you to accurately monitor amount of scrap being produced.
◆Briquetting your swarf allows substantially more localized and tidy storage of your scrap, thus reducing your occupational health and safety risks.
Common Metal Waste:
Aluminum swarf/chips, Cast Iron swarf/chips, Copper swarf/chips, Steel swarf/chips, Stainless Steel swarf/chips, Brass swarf/chips, Titanium swarf/chips, Nickel swarf/chips, etc.
Machine Advantages:
*Using cold pressing technique, not damage attributes of metal.
*Fully automation machine, energy saving, labol saving, cost saving.
*Using standard materials, mature technic, high quality machine, less maintenance.

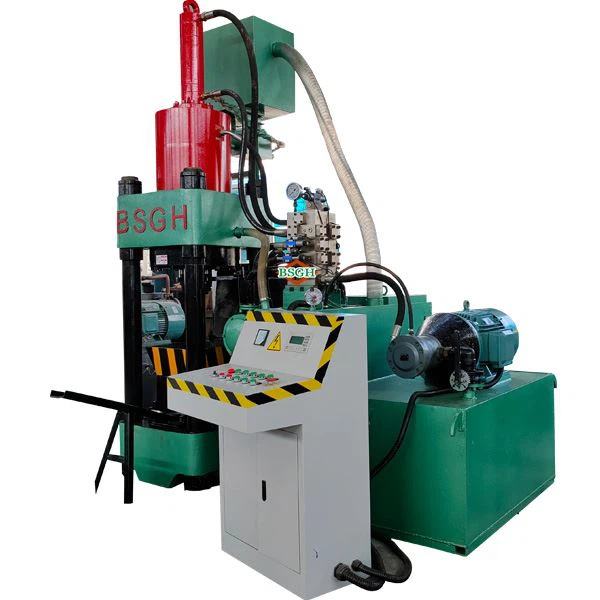

Machine Details:
Scrap metal briquette machine is designed with quick speed cylinder and liquid rinsing valves. And this model has auto charging unit which can be operated by one person.
New design scrap metal pressing machine is under control of PLC automatic feeding machine, automatic briquetting, and automatic block.
Raw Material:

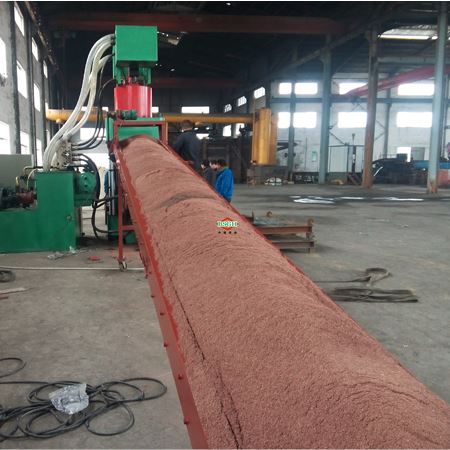

Scrap copper |
Aluminum scrap |
Final product:

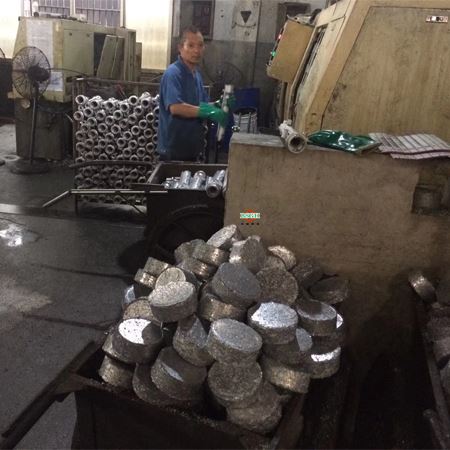

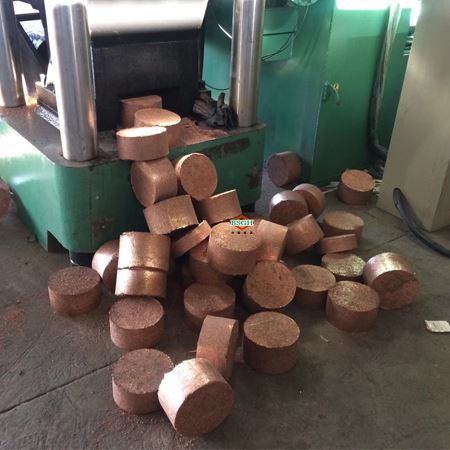

End copper briquette |
End aluminum briquette |
BSGH EQUIPMENT Aftersale Service:
1: Overseas technical support available.
2: All day long 24-hour service, call me: 008613772508206.
